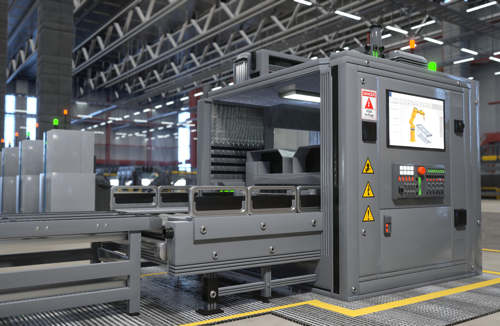

Anti-drop Systems for Palletizers
There are many safety challenges that exist in palletizing operations. Risk mitigation begins by identifying key hazards associated with palletizers, including electrical risks from cables and equipment, pneumatic and hydraulic dangers due to high-pressure fluid expulsion, and mechanical threats such as entrapment, crushing, and falling objects. These hazards are particularly concerning due to the presence of moving parts and suspended loads that can cause severe injuries or fatalities if not properly managed.
Risk Assessment
To address these risks, hazards and tasks must be categorized, emphasizing the importance of energy isolation and lockout/tagout (LOTOTO) procedures. Everyday maintenance and operational tasks expose workers to multiple hazards, such as crushing, high pressure, and impact, especially during machine adjustments or cleaning. Each task is assessed for severity, frequency, and the possibility of avoidance, with a required performance level of “e” under the EN ISO 13849 standard.
Risk Mitigation
Risk mitigation strategies include a combination of fixed and movable guards with interlocking systems, electro-sensitive protective devices, emergency stop mechanisms, and safety control systems. These safeguards are designed to prevent access to dangerous areas and ensure the machine enters a safe state during emergencies. Compliance with international safety standards such as ISO 12100, ISO 13849-1, and EN 415-4:2021 will better ensure a reliable and safe design. The overall architecture of the safety system for this application operates at Category 4, Performance Level e. This application includes other safety functions (SF-1 to SF-4), each triggered by specific input devices like emergency stops, light curtains, interlocks, and laser scanners. These functions activate anti-drop systems and halt machine operations to prevent accidents.
Conclusion
ROSS Controls’ anti-drop systems for palletizers offer a robust and compliant solution to the complex safety challenges in palletizing environments. By integrating mechanical, electronic, and procedural safeguards, these systems significantly reduce the risk of injury and ensure safer operations. It is important to always adhere to best practices and regulatory standards to protect workers and maintain operational integrity.
