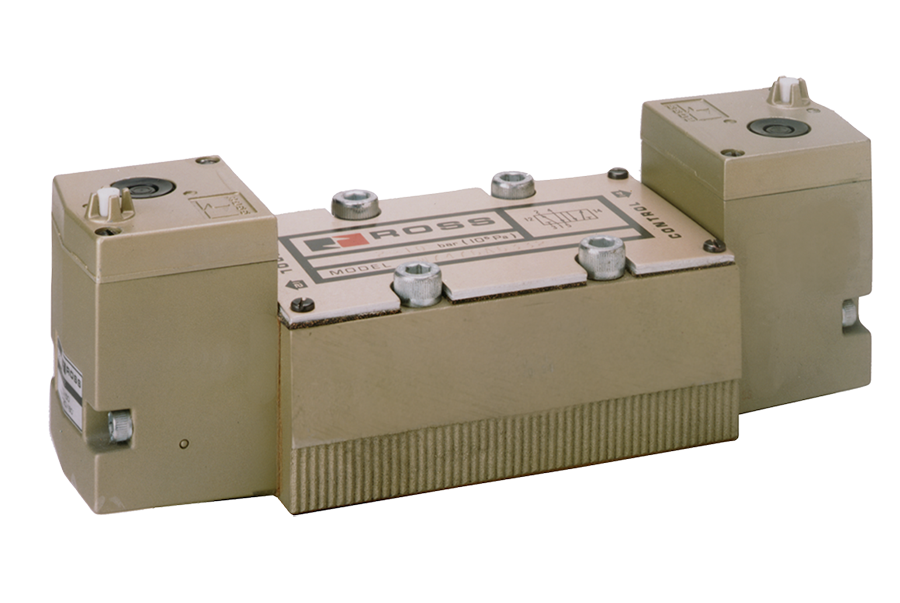

ANSI Valve Series W70 & W74 Series





  • Poppet and Spool & Sleeve Options
  • Pilot operation provides high shifting force with low power consumption
  • Non-locking manual override
  • Individual sub-base or manifold base mounting
  • Suitable for vacuum service (with external pilot supply)
  • ANSI Size 1, 2.5, 4, 10, and 20
  • 2- and 3-position, 5-ported 4-way solenoid pilot or pressure controlled valves

ANSI Valve Series W70 & W74 Series Product Overview

The ROSS® ANSI valves W70 Series are base mounted spool and sleeve valves that conform to the American National Standards Institute (ANSI) standards for valve-to-base interface configurations, including plug-and-socket electrical connections between valve and base.



These ANSI Size 1, 2.5, 4, 10, and 20 valves are available as, 2- and 3-position, 5-ported 4-way solenoid pilot or pressure-controlled valves with either internal or external pilot supply. The spool and sleeve design means there are no seals to wear out.



Please refer to the side and below for links to easily navigate and download ROSS Controls ANSI Valve Series W70 & W74 Series catalogs, installation instructions, and technical data. Additionally, you have the option to filter through all available options to discover ANSI Valve Series W70 & W74 Series variant that meets your requirements.
