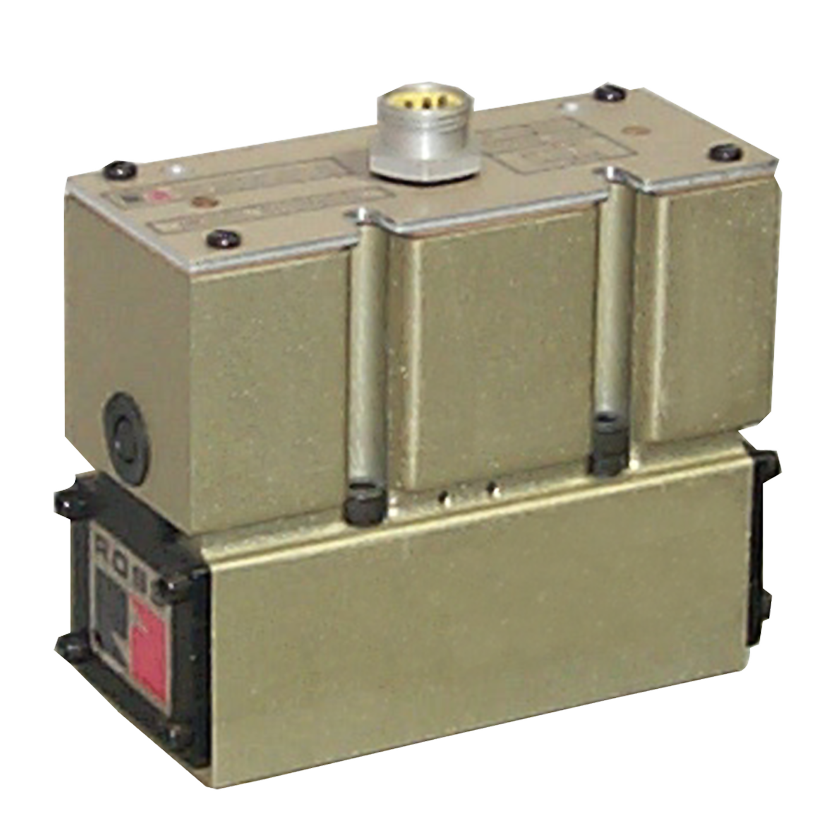

SAE Valves [80 & 84 Series] Base Mounted Spool & Sleeve or Poppet

Actual product may differ from above image. Product details should be verified before purchase.
Installation Instructions - 80 Series Installation Instructions - 84 Series Product Catalog





  • Poppet & Spool & Sleeve Options
  • Pilot operation provides high shifting force with low power consumption
  • Individual sub-base or manifold base mounting
  • Suitable for vacuum with external pilot supply
  • Multi-pin micro and mini electrical connection options
  • SAE Size 125, 250, and 500
  • 2- and 3-position, 5-ported 4-way solenoid pilot valves

SAE Valve Series W80 & W84 Series Product Overview

The ROSS® SAE valves 80 Series are base mounted spool and sleeve valves, designed to conform to the standards of the Society of Automotive Engineers (SAE), this makes the valves for SAE bases interchangeable.These SAE Size 125, 250, and 500 valves are available as, 2- and 3-position, 5-ported 4-way solenoid pilot valves with either internal or external pilot supply. The spool and sleeve design means there are no seals to wear out.



Please refer to the side and below for links to easily navigate and download ROSS Controls SAE Valve Series W80 & W84 Series catalogs, installation instructions, and technical data. Additionally, you have the option to filter through all available options to discover SAE Valve Series W80 & W84 Series variant that meets your requirements.

Series Overview

loading...

loading...

Product Overview

The ROSS Controls Series 80 and Series 84 are base mounted directional control valves conforming to SAE J2051 standards for pneumatic directional control valve interfaces. SAE J2051 compliance means these valves are dimensionally interchangeable with any SAE-standard base in the same size class, enabling drop-in replacement in existing SAE-compatible systems and standardized valve selection across multi-source machine builds.

The Series 80 uses spool and sleeve construction with a micro-thin air bearing between the precision-ground stainless steel spool and the aluminum sleeve. This air bearing eliminates metal-to-metal contact during operation, reduces friction to near zero, and creates an inherently low wear mechanism that sustains consistent response times across high cycle count service. The sealless design of the primary flow circuit removes elastomeric seal wear from the service life calculation.

The Series 84 uses poppet construction with rubber-coated aluminum poppet elements and stainless steel components. The poppet design delivers near-zero internal leakage in both shifted positions and provides enhanced contamination tolerance compared to close-clearance spool designs. Both series are available in SAE sizes 125, 250, and 500, covering average Cv values from 1.4 to 8.2 across the range.

A defining characteristic of the SAE 80 and 84 Series is the multi-pin micro and mini electrical connection system. Ford-wired (4-pin micro, 5-pin mini) and Chrysler-wired (5-pin micro, 5-pin mini) connector configurations are available, reflecting the SAE automotive industry heritage of these valves and their continued adoption in automotive body shop, transfer line, and assembly automation. Indicator lights are integrated into select manifold configurations to provide visual solenoid-energized status.

Key Engineering Features

  • SAE J2051 Compliant Valve-to-Base Interface - Mounting dimensions and port geometry conform to SAE J2051, ensuring interchangeability with all SAE-standard bases in the same size class. Enables direct replacement of competitive SAE valves without base or manifold modification.
  • Micro-Thin Air Bearing (Series 80) - A sustained air film between the stainless steel spool and aluminum sleeve eliminates metal-to-metal contact during operation, enabling rapid response times and sustaining consistent performance across millions of cycles without seal wear degradation.
  • Sealless Primary Flow Circuit (Series 80) - No internal elastomeric seals in the spool-to-sleeve flow path eliminates seal wear as the primary service life limiter. This design is optimized for high-cycle automation where conventional spool valve seals would require periodic replacement.
  • Poppet Construction with Near-Zero Leakage (Series 84) - Rubber-coated aluminum poppets with stainless steel components provide positive sealing in both shifted positions, minimizing internal leakage and associated compressed air waste. Superior contamination tolerance relative to precision spool clearances.
  • Multi-Pin Micro and Mini Electrical Connections - Ford-wired 4-pin micro, 5-pin micro, and 5-pin mini connector options accommodate a wide range of control system wiring standards. Quick-disconnect connectors reduce rewiring time during valve replacement compared to terminal block hardwired connections.
  • Ford and Chrysler Wiring Standard Compatibility - SAE connector pin assignments follow Ford and Chrysler automotive industry wiring specifications, ensuring compatibility with machine electrical panels and PLC I/O wiring already configured for SAE automotive valve standards.
  • Internal or External Pilot Supply - Standard configuration uses internal pilot supply. Field conversion to external pilot supply is supported by repositioning a plug, enabling vacuum service operation and independent pilot pressure control from a separate supply.
  • Non-Locking Manual Override - Flush rubber non-locking push-button manual override is standard on all solenoid pilot configurations. SAE Size 500 single and double solenoid models have optional override kits available. Enables commissioning and fault diagnosis without electrical power.
  • Individual Sub-Base and Manifold Base Mounting - Side-ported individual sub-bases for standalone installations and multi-station manifold bases for centralized air distribution. Manifold blanking plates seal unused stations. Interposed single and dual pressure regulators are available for SAE sizes 125 and 250.
  • Indicator Light Options - Indicator lights are integrated into select manifold configurations to provide visual solenoid-energized status at the manifold station. One indicator light per solenoid coil for double solenoid configurations.

Technical Specifications

General Specifications

Parameter Specification
Valve Functions 5/2 (single solenoid spring return; double solenoid detented); 5/3 (power center, closed center, open center)
Construction Series 80: Spool and Sleeve; Series 84: Poppet
Valve Standard SAE J2051
Actuation Solenoid Pilot Controlled (standard); Pressure Controlled available - consult ROSS
SAE Sizes Available 125, 250, and 500
Avg Cv by SAE Size (Series 80) Size 125: 1.4-2.0; Size 250: 4.0-4.5; Size 500: 8.0-8.2
Avg Cv by SAE Size (Series 84) Size 125: 1.8; Size 250: 5.7; Size 500: 8.0+
Operating Pressure Vacuum to 150 psig (0 to 10 bar)
Pilot Supply Minimum Equal to or greater than inlet pressure (internal pilot); External pilot required for vacuum service
Mounting Base mounted - individual sub-base or manifold base
Electrical Connection 4-pin micro (Ford); 5-pin micro (Chrysler); 5-pin mini (Ford or Chrysler); all voltages
Ambient Temperature 40 to 120F (4 to 50C)
Media Temperature 40 to 175F (4 to 80C)
Fluid Media Filtered compressed air
Valve Body Material Cast aluminum
Series 80 Spool Material Stainless steel
Series 84 Poppet Material Rubber-coated aluminum and stainless steel
Seal Material Buna-N
Manual Override Non-locking flush rubber push-button (solenoid models); optional kit for SAE Size 500
Duty Rating Continuous duty









































Electrical Data (Solenoid Pilot Valves)

All solenoids are rated for continuous duty. Power consumption values apply to each solenoid independently for double solenoid configurations.

Voltage Power Consumption
24 VDC (SAE Sizes 125 and 250) 8 watts per solenoid
24 VDC (SAE Size 500) 14 watts per solenoid
110/120 VAC, 50/60 Hz (SAE Sizes 125 and 250) 8 VA inrush; 6 VA holding per solenoid
110/120 VAC, 50/60 Hz (SAE Size 500) 87 VA inrush; 30 VA holding per solenoid











Flow Performance Data

Average Cv values for Series 80 (spool/sleeve) and Series 84 (poppet). Specific Cv may vary slightly by port size option and valve function selected.

SAE Size Series Avg Cv Length in (mm) Width in (mm) Height in (mm) Weight lb (kg)
125 80 (Spool/Sleeve) 1.4-2.0 1.80 (45) 5.50 (140) 5.10 (129) 2.8-3.5 (1.3-1.6)
125 84 (Poppet) 1.8 1.80 (45) 5.50 (140) 5.10 (129) 3.3 (1.5)
250 80 (Spool/Sleeve) 4.0-4.5 2.60 (65) 6.40 (160) 5.60 (142) 5.7-6.5 (2.6-2.9)
250 84 (Poppet) 5.7 2.60 (65) 6.40 (160) 5.60 (142) 5.7-6.5 (2.6-2.9)
500 80 (Spool/Sleeve) 8.0-8.2 3.00 (76) 9.80-11.25 (248-286) 4.80 (121) 8.3-9.5 (3.7-4.3)
500 84 (Poppet) 8.0+ 3.00 (76) 9.80-11.25 (248-286) 4.80 (121) 8.3-9.5 (3.7-4.3)



















Certifications & Compliance

Certification/Standard Detail
SAE J2051 Conformance Valve body and base interface dimensions conform to Society of Automotive Engineers J2051 standard for pneumatic directional control valve bases. Ensures interchangeability with SAE-compatible sub-bases and manifolds.
CE Declaration of Conformity CE marking available for applicable configurations, satisfying EU Machinery Directive requirements for pneumatic directional control valves.
Continuous Duty Rating All solenoid coils are rated for continuous duty, supporting 24/7 industrial production environments without duty cycle restrictions.
Vacuum Service Suitability Series 80 and 84 are suitable for vacuum service (vacuum to 150 psig operating range) when configured with external pilot supply.



















Typical Applications & Industries

Automotive Body Shop and Transfer Line Automation

  • Automotive body panel clamping, spot welding gun actuation, and transfer bar positioning where SAE J2051 valve standards are specified by automotive OEMs for line consistency and spare parts rationalization.
  • Body-in-white transfer lines with multi-station manifolds mounting multiple SAE 80 or 84 valves on centralized bases, reducing the number of pneumatic supply connections and enabling fast valve-level swap-out during scheduled maintenance windows.
  • Paint line and underbody sealing automation where high cycle rates and continuous-duty solenoid operation over production shifts demand the sealless Series 80 spool and sleeve construction.
  • Assembly line torque tooling, nut runners, and press stations where the multi-pin micro connectors match automotive assembly plant control cabinet wiring standards.

Material Handling and Transfer Equipment

  • Conveyor diverters, lift tables, and escapement mechanisms in automotive and general manufacturing where SAE valve interface compatibility simplifies procurement across multiple machine platforms.
  • Palletizing and depalletizing equipment where manifold-mounted SAE 80 or 84 valves control multiple actuator axes from a common air supply header.
  • Vacuum pick-and-place systems using the Series 84 poppet construction with external pilot supply for vacuum circuit operation.

Packaging and Converting Machinery

  • High-speed case packing, carton erecting, and form-fill-seal equipment where the Series 80 air bearing design sustains cycle rates exceeding 100 million actuations without seal replacement.
  • Web handling, printing press infeed, and converting line registration control where low-leakage Series 84 poppet valves minimize compressed air consumption in multi-valve manifold assemblies.

General Industrial Automation

  • Pneumatic press and stamping machine controls where sub-base or manifold mounting enables compact valve grouping near the point of use.
  • Machine tool work holding, clamping, and fixture cycling where the 5/3 closed center function locks cylinders in a mid-stroke hold position between operations.
  • Test stand pneumatic circuit switching where the SAE J2051 interface enables standardized valve configurations across multiple test configurations.

Ordering and Model Number Configuration

The Series 80 and 84 SAE valve model numbers encode the series, SAE size code, voltage/connector type, port size group, function, return type, solenoid count, and wiring standard. A representative breakdown for a common Series 80 or 84 solenoid pilot configuration is shown below.



Model Number Structure: 80 76 C 4 3 6 1 W



80/84 Series (80 = Spool & Sleeve; 84 = Poppet)



75/76/77 SAE Size Code (75 = SAE 125; 76 = SAE 250; 77 = SAE 500)



B/C Voltage Code (B = 24 VDC; C = 110-120 VAC)



4 Port Size Group



3/4 Function Code (3 = 5/2; 4 = 5/3)



3/4/5/6 Return/Center Code (1 = spring; 2 = detented; power/closed/open center for 5/3)



1/2 Solenoid Count (1 = Single; 2 = Double)



W/Z Wiring Code (W = Ford wired; Z = Chrysler wired)







































Standard voltage options: 24 VDC (code B) and 110-120 VAC 50/60 Hz (code C). Power consumption for SAE sizes 125 and 250 is 8 watts DC or 8 VA inrush/6 VA holding AC. For SAE size 500, power is 14 watts DC or 87 VA inrush/30 VA holding AC.

Connector wiring options: Ford wired (4-pin micro, 5-pin mini - code W) or Chrysler wired (5-pin micro, 5-pin mini - code Z).

Series 80 uses spool and sleeve construction (no internal seals in flow circuit). Series 84 uses poppet construction. Both series mount on identical SAE J2051 sub-bases and manifolds for the same SAE size.

Pressure-controlled (pneumatic) variants of the SAE valve series are available for some sizes. Consult ROSS for model numbers and availability.

Manual override is standard on solenoid pilot valves except SAE Size 500 where an optional override kit must be ordered separately (part number 593K91 for single, 873H91 for dual).

Sub-bases and manifold stations are ordered separately. All necessary hardware and O-ring seals for assembly are included with each manifold station. Blanking plates for unused manifold stations are ordered by SAE size (820K77 for 125, 821K77 for 250, 822K77 for 500).

Interposed regulators for SAE sizes 125 and 250: single regulator (595K91 for 250, 593K91 for 125) and dual regulator (816H91 for 250, 873H91 for 125). These sandwich between the valve and sub-base/manifold station.

Accessories

SAE Sub-Bases (Side-Ported, Individual)

Individual side-ported sub-bases are available for all three SAE sizes. Sub-base port sizes are specified by the valve work ports (A, B) and pressure/exhaust ports (P, EA, EB) to match the system piping.

SAE Size Model Work Ports A/B Pressure/Exhaust Ports P/EA/EB
125 577K91 1/8" NPT 1/4" NPT
125 578K91 1/4" NPT 3/8" NPT
125 579K91 3/8" NPT 3/8" NPT
250 580K91 1/4" NPT 3/8" NPT
250 581K91 3/8" NPT 3/8" NPT
500 585K91 1/2" NPT 3/4" NPT
500 586K91 3/4" NPT 1" NPT
500 587K91 1" NPT 1" NPT



















Warning: NPT port threads standard. For SAE thread ports on sub-bases, consult ROSS.



Manifold Bases

Multi-station manifold bases enable centralized mounting of multiple Series 80 or 84 valves with common supply and exhaust distribution. Manifold configurations for SAE 125 and 250 include integrated indicator lights in the end plate. All hardware and seals for manifold assembly are included with each station.



Blanking Plates

Blanking plates seal unused manifold stations and maintain manifold pressure integrity. Available by SAE size: 820K77 (SAE 125), 821K77 (SAE 250), 822K77 (SAE 500).



Interposed Regulators

Single and dual interposed regulators sandwich between the valve and sub-base or manifold station to provide per-actuator pressure adjustment from a common supply. Available for SAE sizes 125 and 250.



Manual Override Kits (SAE Size 500)

Optional manual override kits are available for SAE Size 500 valves. Single override kit: 593K91. Dual override kit: 873H91. These install in field on the SAE 500 valve body.



Related Products & Accessories

Frequently Asked Questions (FAQ)

Q: What is the difference between the Series 80 and Series 84?

A: Series 80 uses spool and sleeve construction. A precision-ground stainless steel spool operates inside an aluminum sleeve with a micro-thin air bearing between them, eliminating internal elastomeric seals from the flow circuit. Series 84 uses poppet construction with rubber-coated aluminum poppets and stainless steel components, providing near-zero internal leakage. Both series mount on the same SAE J2051 sub-bases and manifolds for a given SAE size. Choose Series 80 for maximum service life in high-cycle, high-duty applications. Choose Series 84 when near-zero leakage is required or in environments with elevated contamination levels.

Q: What does SAE J2051 compliance mean for these valves?

A: SAE J2051 is the Society of Automotive Engineers standard specifying the mounting interface dimensions, port locations, and O-ring groove geometry for base mounted pneumatic directional control valves. Compliance means ROSS Series 80 and 84 valves will physically interchange on any SAE J2051-compliant sub-base or manifold in the same size class, regardless of the valve or base manufacturer. This is the basis for the valves' automotive industry adoption where multi-source interchangeability is a procurement requirement.

Q: What electrical connection options are available?

A: Three multi-pin connector types are available: 4-pin micro connector (Ford wiring), 5-pin micro connector (Chrysler wiring), and 5-pin mini connector (Ford or Chrysler wiring). The 5-pin versions include an additional pin for external pilot supply switching. All connector types are available for both 24 VDC and 110-120 VAC at 50/60 Hz. Specify Ford wired (code W) or Chrysler wired (code Z) when ordering.

Q: What SAE sizes are available and what Cv values do they cover?

A: Three SAE sizes are available: SAE 125 (Cv 1.4-2.0 for Series 80, Cv 1.8 for Series 84), SAE 250 (Cv 4.0-4.5 for Series 80, Cv 5.7 for Series 84), and SAE 500 (Cv 8.0-8.2 for both series). Select the size by calculating the minimum Cv needed for your actuator at the required speed, then choosing the next larger standard SAE size. Series 84 poppet provides higher Cv for size 250 versus Series 80, which can be advantageous in high-flow applications.

Q: Can these valves operate in vacuum service?

A: Yes. Both series support vacuum service (from vacuum up to 150 psig) when configured with external pilot supply. The external pilot provides the pressure differential required to shift the valve when inlet pressure is at or below atmospheric. Standard internal pilot configurations cannot be used for vacuum service.

Q: How does the Series 80 air bearing design work?

A: When the valve is operating above minimum pressure, a thin film of compressed air flows between the stainless steel spool and the aluminum sleeve bore. This air bearing suspends the spool in the sleeve, eliminating metal-to-metal contact during operation. The result is a low friction, low wear mechanism that supports very fast response times and maintains those response times over a service life exceeding 100 million cycles.

Q: Is manual override standard on all configurations?

A: A non-locking flush rubber push-button manual override is standard on all solenoid pilot configurations for SAE sizes 125 and 250. For SAE Size 500, the manual override is not built into the standard valve and requires a separately ordered optional override kit (single: 593K91, dual: 873H91).

Q: What is the power consumption for Series 80 and 84 solenoids?

A: For SAE sizes 125 and 250: 8 watts per solenoid at 24 VDC, or 8 VA inrush and 6 VA holding on 110-120 VAC 50/60 Hz. For SAE size 500: 14 watts per solenoid at 24 VDC, or 87 VA inrush and 30 VA holding on 110-120 VAC 50/60 Hz. For double solenoid configurations, size the power supply for both solenoids simultaneously even though normal operation energizes only one at a time.

Q: What sub-base port sizes are available?

A: Sub-base port sizes vary by SAE size. For SAE 125: work ports A/B in 1/8", 1/4", or 3/8" NPT; pressure/exhaust ports in 1/4" or 3/8" NPT. For SAE 250: work ports in 1/4" or 3/8" NPT; pressure/exhaust ports in 3/8" NPT. For SAE 500: work ports in 1/2", 3/4", or 1" NPT; pressure/exhaust ports in 3/4" or 1" NPT. Sub-bases ship without valves; order both separately.

Q: Can I add pressure regulation to individual manifold stations?

A: Yes. Interposed regulators for SAE sizes 125 and 250 are available in single and dual configurations. The regulator assembly sandwiches between the valve bottom surface and the sub-base or manifold station, and the valve bolts through the regulator. This provides independent pressure adjustment for each actuator without separate regulator fittings in the circuit plumbing.

Q: What 5/3 center position options are available?

A: 5/3 three-position valves offer three center position configurations: power center (supply to both work ports, exhaust blocked - cushioned stop), closed center (all ports blocked - locked position hold), and open center (all ports exhausted - free float or gravity descent). Specify the center position type based on the required actuator behavior at rest.

Q: Are Series 80 and 84 valves interchangeable on the same sub-bases?

A: Yes. Both series conform to SAE J2051 mounting interfaces for the same SAE size, so a Series 80 spool/sleeve valve and a Series 84 poppet valve of the same SAE size are physically interchangeable on identical sub-bases and manifold stations. This allows application-specific selection (high cycle life vs. near-zero leakage) without changing the base hardware.

Q: What filtration is recommended for Series 80 valves?

A: ROSS recommends a minimum 40-micron filter for standard applications. For Series 80 spool and sleeve valves, finer filtration to 25 microns extends service life by reducing particulate ingress into the spool-to-sleeve clearance. The Series 84 poppet design is inherently more tolerant of contamination than precision spool clearances but also benefits from clean air supply.

Q: How long is the expected service life of the Series 80?

A: The Series 80 spool and sleeve design is rated for service life exceeding 100 million cycles under normal operating conditions (rated pressure, temperature, and filtered air supply). This figure reflects accelerated life test data conducted at maximum pressure and temperature. Actual service life depends on duty cycle, operating conditions, and air quality.

Installation & Maintenance Guidelines

  • Confirm that the SAE size of the sub-base or manifold matches the SAE size of the valve before mounting. SAE 125, 250, and 500 bases are not interchangeable. Attempting to mount an incorrect size valve onto a base will not seal properly.
  • Inspect all O-ring seals at the valve-to-base interface prior to installation. The O-rings seal the supply, work, and exhaust ports between valve and base. Replace any O-rings showing cuts, compression set, or surface degradation. Use only ROSS-specified O-ring materials.
  • Apply mounting bolt torque to the specification in the ROSS installation instructions for the specific SAE size. Torque all mounting bolts in a cross pattern to ensure even seating of the valve on the base O-rings. Over-torquing distorts the aluminum body and base; under-torquing allows O-ring extrusion.
  • Supply filtered compressed air meeting the 40-micron recommendation for standard applications. For Series 80 valves in high-cycle applications, 25-micron filtration is preferred. Connect the filter drain before pressurizing to remove condensate accumulated during system downtime.
  • Ensure the supply line to the base inlet port is adequately sized. Undersized supply lines create a pressure drop between the air preparation unit and the valve, reducing available shifting pressure below the minimum operating requirement, particularly at high cycle rates.
  • Do not restrict exhaust ports. Exhaust back pressure exceeding 15 psig (1 bar) impairs shift performance and can prevent complete valve actuation. Exhaust silencers must be rated for the valve's full exhaust flow capacity. Inspect and replace clogged silencers immediately as they cause increased back pressure.
  • For vacuum service applications, convert the valve to external pilot supply before installation. The external pilot pressure must meet the minimum operating requirement for the SAE size. Do not operate Series 80 or 84 valves in vacuum service using internal pilot supply.
  • Engage the multi-pin micro or mini connector fully and verify the locking mechanism is engaged before powering the system. Partial connector engagement results in intermittent solenoid actuation. In automotive assembly environments with vibration, use connectors with secure locking tabs.
  • Verify solenoid coil voltage and wiring standard (Ford or Chrysler) match the control system output before electrical connection. Applying incorrect voltage or reversed polarity on DC configurations will damage the coil.
  • For AC solenoid configurations, verify the control output is rated for the inrush VA of the solenoid, not just the holding VA. For SAE size 500 AC, inrush is 87 VA. An output relay or solid-state output undersized for inrush will fail prematurely.
  • When installing blanking plates on unused manifold stations, torque all fasteners to the specification for the valve mounting at that SAE size. Blanking plates must seal the O-ring interface with the same clamping load as a valve.
  • Cycle each installed valve through 10 complete electrical actuations before connecting actuator loads. Verify shift in both directions using the manual override first at rated operating pressure, then confirm electrical actuation. Document any valve that fails to shift consistently for replacement before production startup.
  • For manifold installations, calculate total supply flow demand from all valves on the manifold. Verify the manifold supply port size is adequate to supply all valves simultaneously at the operating pressure without excessive pressure drop. Undersized manifold supply ports starve downstream valve stations.
  • Label each manifold station with the valve model, SAE size, solenoid voltage, work port connections, and actuator function after installation. This documentation is critical for fast troubleshooting and ensures correct valve selection during future replacement.
  • When converting from internal to external pilot supply, relocate the pipe plug from the internal pilot passage to the external pilot port as described in the ROSS installation instruction. Pressure-test the valve after conversion before committing to production.

Warranty & Global Support

ROSS Controls provides a one-year warranty on all Series 80 and 84 valves and accessories, covering defects in material and workmanship from the date of purchase.

Global technical support is available through ROSS Controls offices in the United States (headquarters in Ferndale, Michigan), Canada, Brazil, Germany, France, United Kingdom, India, China, and Japan.

Contact ROSS Controls at (800) 438-7677 (1-800-GET-ROSS) or visit rosscontrols.com for product configuration assistance, replacement part identification, and distributor locator services.

Estimated ship dates for standard configurations in quantities of 10 or fewer units are typically 3 to 4 weeks. In-stock variants ship faster. Shipments are made throughout the United States.

Download Catalog: https://www.rosscontrols.com/en/documents/5/sae-valves-80-84-series
