Automotive Application Solutions

Stamping Press Clutch, Brake, and Safety Exhaust

Mechanical press clutch and brake systems require valves that respond predictably on every stroke, exhaust trapped energy on demand, and provide internal monitoring that prevents restart after a fault. The DM2 Series and complementary double valves deliver redundant operation, dynamic monitoring, and high flow capacity sized for press clearance volumes. Safety exhaust on press auxiliary circuits, slide adjustment cylinders, and counterbalance lines uses the same valve architecture to ensure the press cannot inadvertently cycle while maintenance personnel are working at die height. Press tonnage ranges across automotive stamping operations from smaller piercing and trim presses through major progressive and transfer dies handling body panels and structural components, and ROSS double-valve products scale to address each tier of this range with appropriately sized flow capacity and monitoring response.

Key Benefits

• Redundant valve elements with internal pressure-sensing monitoring satisfy ANSI B11.1 and ISO 16092 control reliability expectations.
• High flow with minimal pressure drop maintains press cycle rates under load.
• Inhibit-restart logic forces operator-initiated reset after a detected asynchronous condition.

Typical Applications

• Mechanical press clutch and brake control
• Hydro-pneumatic press counterbalance and overload
• Slide adjustment and die cushion safety exhaust
• Press auxiliary equipment isolation during die changes

---

Robotic Assembly Cell Energy Isolation

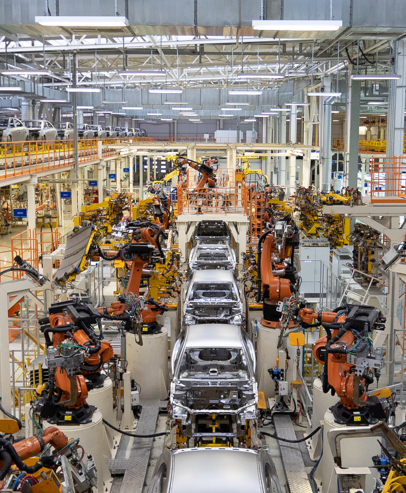

Body-in-white, weld, and final assembly cells combine multiple robots with conveyors, fixtures, and material handling automation. When a technician enters the work envelope to clear a fault, replace tooling, or perform scheduled maintenance, every pneumatic actuator in that cell must be reliably isolated and exhausted to atmosphere. ElectroGuard Plus and L-O-X energy isolation solutions provide a single, lockable point of control that drops both electrical and pneumatic energy, with verification that the system has reached zero state before access is permitted.

Key Benefits

• Combined electrical and pneumatic energy isolation simplifies LOTO procedures and reduces missed isolation steps.
• Lockable hardware integrates into existing plant lockout discipline.
• Visual and electrical confirmation of de-energized state supports work permit procedures.

Typical Applications

• Robotic weld cell maintenance access
• End-of-arm tool change stations
• Conveyor and fixture pneumatic isolation
• Cell guarding interlock pneumatic shutoff

---

Vertical Work Station Load Holding

Vertical assembly stations, lift-and-carry transfers, and ergonomic operator workstations frequently use pneumatic cylinders to position parts above the work surface. A power loss, hose rupture, or valve failure in these applications can drop a load onto operators or fixtures, creating significant safety and quality exposure. Pilot-operated check valves combined with soft-start and energy isolation hardware hold loads in position even when supply pressure is interrupted, allowing controlled descent only when the operator commands it.

Key Benefits

• Pilot-operated check function holds load against gravity if supply pressure is lost.
• Soft-start energization prevents sudden actuator motion when pressure is restored after isolation.
• Compatible with redundant control architectures where required by risk assessment.

Typical Applications

• Vertical lift-assist devices
• Pneumatic balancers and hoists
• Vertical clamp and fixture stations
• Engine, transmission, and battery pack handling

---

Tire Uniformity Optimization

Tire uniformity testing and optimization machines apply controlled pneumatic forces to finished tires while sensors measure radial and lateral runout, conicity, and force variation. ROSS has developed solutions for tire uniformity optimizers that combine high-flow directional control with the air preparation needed to deliver consistent pressure to test fixtures, all within the cycle time targets tire production lines demand. Information on automotive applications including tire uniformity is available on the ROSS Automotive Industry page.

Key Benefits

• High-flow valve packages match tire test fixture inflation and exhaust requirements.
• Repeatable pressure delivery supports measurement accuracy.
• Modular air preparation simplifies maintenance and component replacement.

Typical Applications

• Tire uniformity test machines
• Force variation and runout measurement fixtures
• Bead seating and inflation stations
• Quality lab tire test equipment

---

Paint Shop and Pretreatment Pneumatics

Automotive paint shops, pretreatment lines, and ovens combine demanding cleanliness requirements with elevated temperatures and aggressive chemistries. Pneumatic valves serving spray applicator stations, robotic painters, conveyor indexing, and door and hood handling fixtures must tolerate paint solvent atmospheres, washdown procedures, and the temperature range that pretreatment and bake ovens impose on adjacent equipment. The 21 Series extended-temperature poppet valves, redundant double valves for safety circuits, and properly specified air preparation packages keep paint shop pneumatics reliable across the multi-stage process.

Key Benefits

• Extended-temperature valve options serve oven-adjacent and pretreatment-zone equipment.
• Poppet valve construction tolerates contamination from paint atmospheres better than spool designs.
• Air preparation matched to spray and atomization requirements reduces paint defects traceable to air quality.

Typical Applications

• Robotic paint applicator support pneumatics
• E-coat and pretreatment fixture handling
• Color change valve sequencing
• Door, hood, and deck lid handling fixtures

---

Body-in-White and Final Assembly Material Handling

Vehicle bodies move through hundreds of stations between sheet metal stamping and final assembly, with pneumatic clamps, locators, and lift fixtures positioning each subassembly for welding, sealing, and fastening operations. The valves serving these stations cycle continuously, must respond predictably under varying supply pressure, and have to release loads safely if power is interrupted. Combinations of standard 27 Series directional control valves, pilot-operated check valves for load holding, and properly specified air preparation packages keep body-in-white and final assembly stations operating at the cycle rates production schedules require.

Key Benefits

• High cycle life poppet valve construction matches the duty cycle of continuous assembly operations.
• Pilot-operated check valves prevent uncontrolled load motion during pressure loss events.
• Standardized valve families simplify spare parts strategy across multiple stations and lines.

Typical Applications

• Geometry station clamps and locators
• Respot weld station clamping
• Decklid, hood, and door fitment fixtures
• Lift-and-carry transfer between stations

---

Pneumatic Distribution and Branch Line Isolation

Large automotive plants operate compressed air distribution systems that span hundreds of thousands of square feet, branching from main headers to individual machine drops. Each branch and drop requires reliable isolation for maintenance, equipment changeovers, and energy management initiatives that shut down unused sections during off-shift periods. L-O-X energy isolation valves at branch and drop locations provide a clear, lockable point of control that maintenance personnel can verify visually, supporting both safety procedures and energy conservation programs.

Key Benefits

• Lockable handles support both LOTO procedures and routine isolation for energy management.
• Available port sizes through 3 inches address main headers as well as machine drops.
• Visual indication of valve state simplifies branch line audits and energy survey work.

Typical Applications

• Main header sectional isolation
• Branch line maintenance shutoff
• Off-shift energy management
• Machine drop and equipment supply isolation

• ROSS/FLEX: Engineered Solutions When Catalog Products Are Not Enough

  Automotive applications regularly present requirements that fall outside any standard catalog. A press retrofit may require a valve manifold sized to legacy bolt patterns. A new tier supplier line may require integrated valve, sensor, and exhaust packages purpose-built for a specific cycle rate. ROSS/FLEX is the engineered solution capability that develops, validates, and manufactures purpose-built pneumatic solutions when off-the-shelf product does not address the application. Working from customer specifications, our engineering teams design custom valve assemblies, integrated air preparation packages, and special-application energy isolation solutions, all manufactured to the same quality standards as our standard product catalog.

  Customers engaging ROSS/FLEX typically begin with a problem statement: a stamping press that is being retrofitted to current safety expectations, a robotic cell layout that does not accommodate standard valve packages, a specialized process that requires non-standard flow rates or port configurations, or a facility-wide initiative to standardize energy isolation across legacy and current equipment. From these starting points, ROSS/FLEX engineers translate the application into a manufacturable design, validate the result against applicable standards, and deliver a solution that is supported by the same parts and service infrastructure that backs our standard product lines. For automotive customers managing diverse equipment populations across multiple plants, this capability has been the difference between a workable retrofit and an extended production interruption.

  ROSS/FLEX engagements frequently produce designs that can be deployed beyond the original application. A custom valve package developed for one plant may become the standard for sister facilities. An integrated air preparation manifold designed for a specific tier supplier line may be adapted for similar applications across the broader automotive customer base. This pattern of engineered solutions becoming repeatable platforms is one of the ways automotive customers extract long-term value from a ROSS/FLEX engagement.

• Sustaining Engineering and the Long Production Tail

  Automotive vehicles remain in production for many years, and the equipment that builds them often serves multiple model generations. Pneumatic components specified at the start of a vehicle program must continue to perform through model refreshes, mid-cycle enhancements, derivative variants, and the eventual transition to successor programs. ROSS supports this long production tail through replacement parts, rebuild kits, technical documentation, and applications engineering availability that extends well beyond the initial sale. Plants performing scheduled rebuilds on stamping presses, robotic cells, or vertical work stations can typically obtain the same valves, the same internal components, and the same performance characteristics as the original installation, simplifying maintenance planning and avoiding the validation work that comes with substituting alternative components.

  This sustaining engineering posture is particularly relevant when automotive customers consolidate equipment between plants, transfer production lines to new facilities, or update legacy equipment to current safety expectations. In each scenario, the ability to obtain consistent product, technical support, and engineered solutions from a single source reduces project risk and shortens the engineering cycle required to bring the relocated or upgraded equipment back online. Many of the L-O-X valves contributing to the more than 500,000 installations protecting workers in automotive facilities worldwide were specified decades ago and continue to serve their original applications with periodic rebuild and inspection.

• Why Automotive Customers Specify ROSS

  The consistent thread across the product families and application solutions outlined above is engineering judgment validated by decades of automotive plant floor experience. ROSS poppet valve technology, our redundant double-valve architectures, the L-O-X family of energy isolation products, MD3 and MD4 air preparation, and ROSS/FLEX engineered solutions are not isolated product offerings. They form a coherent toolkit that automotive engineering teams use to address the full pneumatic lifecycle of a production line, from initial design through commissioning, sustaining engineering, retrofits, and equipment relocation between plants. The same valve families that protect workers in stamping operations also serve robotic cell isolation, vertical work station load holding, paint shop pneumatics, and air distribution systems, allowing automotive customers to standardize on a manageable set of platforms across diverse production environments.

  The operational benefit of this consistency shows up in spare parts strategy, training programs, and the time required to specify a new line. A maintenance technician trained on the 27 Series directional control valve family can service that valve regardless of the station or process where it is installed. An automation engineer who has specified a DM2 Series double valve for one press has the foundation to specify it again for a similar press at a sister facility, with confidence that performance, monitoring behavior, and integration patterns will be consistent. Multiplied across thousands of pneumatic components in a typical automotive plant, this consistency translates directly into reduced downtime, lower training overhead, and faster recovery when faults do occur.

  ROSS engineering and applications teams work alongside automotive customer engineering organizations on initiatives ranging from individual component specification through facility-wide standardization programs. The relationships behind these engagements are typically multi-year, with ROSS engineers participating in equipment design reviews, retrofit project planning, safety initiative rollouts, and sustaining engineering as production needs evolve. The result is a customer experience grounded in collaboration rather than transactional component supply, and the investment automotive customers make in this collaboration pays back across the long lifecycles automotive equipment typically serves.

• Engage ROSS Engineering for Your Automotive Application

  Whether you are specifying components for a new vehicle assembly line, evaluating energy isolation strategies for a multi-plant safety initiative, or troubleshooting cycle life on existing press valves, ROSS engineering teams are available to work through the application with you. Our regional sales engineers, applications specialists, and ROSS/FLEX engineering organization collaborate with OEM design teams, tier supplier engineering groups, and end-user plant engineering and maintenance organizations to deliver solutions calibrated to automotive production requirements.

  To begin a conversation about your application, Contact ROSS Controls and provide the application context, target standards, port sizes, and cycle rate expectations that frame your requirement. Our team will respond with the right combination of standard product, ROSS/FLEX engineered solution, or hybrid approach to address what you need. The earlier ROSS engineering is engaged in an automotive equipment design or retrofit project, the more value our applications team can contribute in component selection, safety circuit architecture, and air preparation specification, and the lower the total project cost typically becomes when measured across the full equipment lifecycle from commissioning through sustaining engineering and end-of-program transition.
