Process Optimization for Molded Pulp Packaging Applications
The Process
Molded pulp packaging involves several stages to transform recycled paper or fiber into protective packaging offering an eco-friendly, biodegradable, and cost-effective alternative to traditional packaging materials.
1. Pulp Preparation
Raw Material: Recycled paper, cardboard, or virgin fibers.
Process: Materials are mixed with water to create a pulp slurry.
Goal: Achieve the right fiber consistency for molding.
2. Forming
Method: A forming mold (usually perforated) is submerged in the pulp slurry.
Vacuum suction pulls fibers onto the mold surface, creating the initial shape.
Result: Wet molded part with excess water.
3. Pressing
Action: The wet part is transferred to a press mold.
Purpose: Compress fibers, remove water, and improve dimensional accuracy.
4. Drying
Techniques: Oven drying, hot air, or heated molds.
Goal: Remove remaining moisture and harden the structure.
5. Trimming & Finishing
Trimming: Remove excess material for clean edges.
Surface Treatment: Optional coatings for moisture resistance, oil barrier, or branding.
6. Quality Control
Check for dimensional accuracy, strength, and surface finish.
Problem
The process faces issues in the forming stage such as downtime caused by pulp slurry entering vacuum valves and the strain of high cycle rates—up to 25,000 cycles per day.
Solution

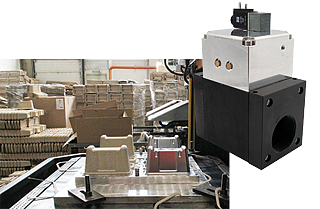

A targeted approach can be used to solve operational challenges in sustainable packaging applications, specifically molded pulp fiber production. To address these challenges, ROSS recommends its poppet valve technology, which is engineered for high dirt tolerance, bi-directional flow, and self-cleaning capabilities. These valves are designed for long life (up to 20 million cycles) and high-speed, repeatable performance, significantly improving productivity. Additional options include valve manifolds and models suitable for liquid applications, enhancing system flexibility. These valves are built with rugged materials like cast aluminum and stainless steel, and are rated for continuous duty with IP65 enclosure protection.
Summary
ROSS Controls offers a robust and reliable valve solution tailored to the demands of molded pulp packaging systems. By combining durable engineering with advanced fluid control features, ROSS helps manufacturers reduce downtime, improve efficiency, and support the transition to sustainable packaging.
