Our Selection of Applications & Products

Iso5599i w60 series ds valves Base Mounted Valves
ISO 5599/I Series
Online Catalog Download PDF
95 5 2 double solenoid Inline Mounted Valves
95 Series
Online Catalog Download PDF

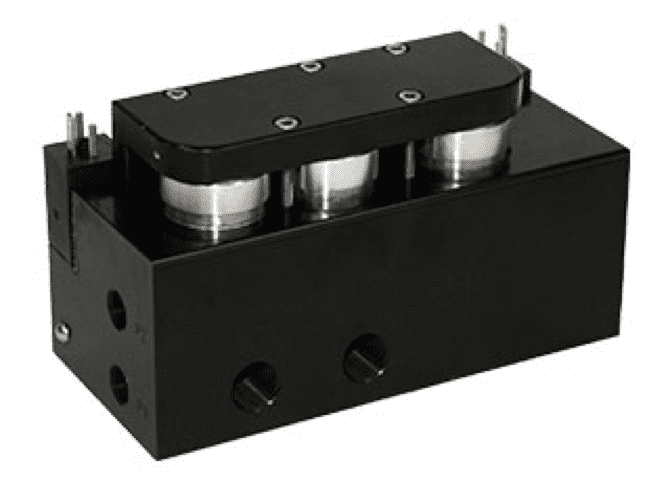

Dale series lt 3w sc ltest valve manifold Leak Test Valves
Dale LT Series
Online Catalog Download PDF
Dale series cp cx 2w sc valve Leak Tight Valves
Dale CX Series
Online Catalog Download PDF
Comb filter regulator lubricator modular md4 Air Preparation FRLs Online Catalog Download PDF
15 series lox classic Energy Isolation - Lockout
15 Series
Online Catalog Download PDF
Sv27 with lox sc sensing valves Sensing Valves
SV27 Series
Online Catalog Download PDF

Assembly & Test Application Solutions - Poppet Valves

ROSS poppet valves pop open and closed almost instantly.  Surface areas of the piston poppet, the exhaust poppet and the inlet poppet are carefully calculated to produce strong shifting and sealing forces in each direction. This results in a design, which ensures high speed, repeatability and high shifting forces.

Poppet valves

ROSS poppet valves have positive sealing with no sliding action to prevent damage and wear. They are also self-cleaning and dirt tolerant thanks to the smallest flow-through area across the poppet’s seal and seat which produces a high-enough velocity to blow out all dirt and foreign matter. Plus, the valve is self-compensating for wear by automatically changing stroke length due to height changes in the valve seal from burnishing. These valves are designed for repeatability, high-temperature service, high speed, and high-shift consistency over the life of the valve.

Browse Our Catalog

ROSS Safety Applications

Channel Select Leak Test

Using the Dale Manifold with a bench top unit allows the customer to test multiple parts at one time or to test multiple chambers in one single part.

Bypass Fill & Exhaust Leak Test

A bypass valve is used generally for two reasons: To improve cycle time by filling and exhausting with a high flow valve or as an exhaust valve that will prevent contamination such as sand in a casting from damaging the internals of the bench top unit.

Vacuum Pick & Place

Pneumatic vacuum pick & place systems are an ideal choice when moving materials from one location to another in manufacturing applications where conveyors do not provide the precision that is required.  Vacuum systems have a lower initial cost and offer other advantages including offering a greater force density, can be mounted close to the process, does not require complex software programming, and are better suited for imperfect environments.

Questions? Contact Us

ROSS Controls - White Papers

Making safety first is everyone’s goal, and you can take advantage of additional free resources to make that happen. ROSS is proud to provide downloadable white papers for you to use to increase the safety in your Assembly & Test applications and stay up to date on industry standards. You can find all the latest white papers by clicking the link below.

View White Papers

ROSS/FLEX – Tailoring Standard Products to Your Specific Applications

ROSS/FLEX

Using the customer’s expertise and intrinsic knowledge of the smelter application, together with ROSS engineering’s capability to quickly design/manufacture a solution using ROSS' proven Poppet internals, opens the door to painless continuous improvement (cost reduction, improved performance, increased uptime, improved safety, etc.).

Get Started ROSS Systems

ROSS is a trusted source for systems and panels for existing or new designs.  ROSS will build and test systems and panels to your exact specifications using superior materials and proven expertise and can offer on-site testing and installation assistance.

Get Started

ROSS Controls – Safety Specialists

ROSS employs a team of Global Industry Specialists with vast experience in fluid power applications with special emphasis on Safety. The ROSS Safety Team participates on industry standards committees that set policy and best practices for machine guarding in order to improve worker Safety, reduce the likelihood of equipment damage, and increase productivity.

Learn More

ROSS Controls - Trade Shows

You can find ROSS at tradeshows around the world there to help you with your fluid power safety and product needs. Join us at the tradeshows listed below:

Ppsa
Pulp & Paper Safety
Charleston, SC USA
Rockwell otm
Rockwell Automation On The Move
Portland, OR USA
Automation expo2017
Automation Expo 2017
Mumbai, INDIA
Pack expo
PACK EXPO International
Las Vegas Convention Center
Las Vegas, NV USA
Motek
Motek International Trade Fair
Stuttgart, GERMANY
Glasstec
Glasstec Germany
Dusseldorf, GERMANY
Fabtech
FABTECH 2017
Chicago IL USA
Rockwell automation
Automation Fair
Houston, TX USA

Contact ROSS Controls

Our team of Assembly & Test Specialists, would be happy to assist in finding the right solution based on your individual requirements. Please feel free to reach out to our team to get the conversation started to see how ROSS can help you!
