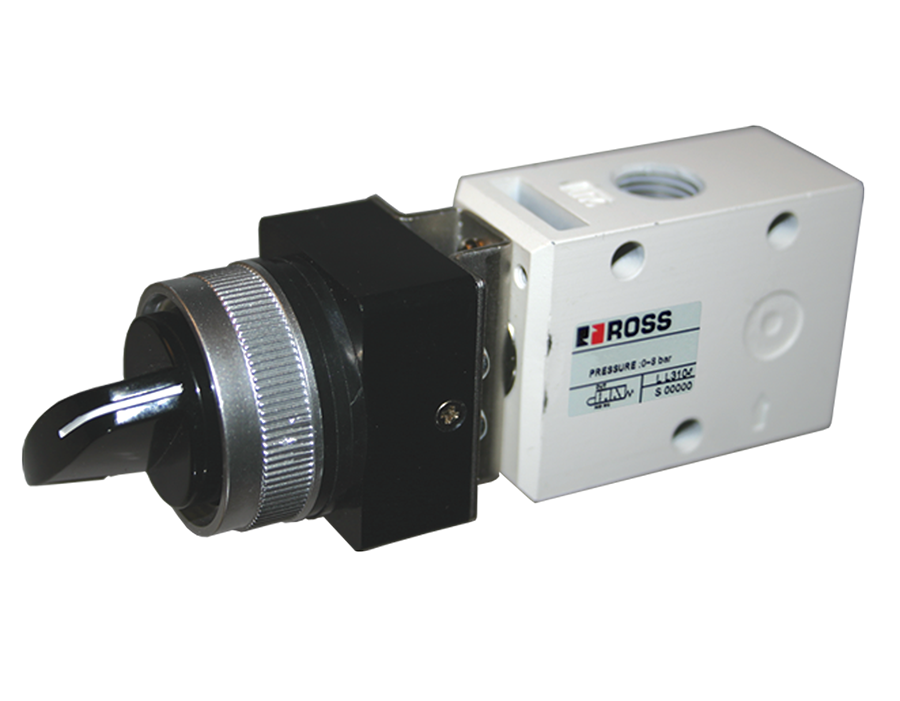

Selector Switch Valves

1223B2SLB





  • 3/2 inline, spool & sleeve valve
  • Black switch knob actuator
  • Normally Close, or Normally Open operations simply by piping the inlet supply accordingly

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

1223B2SLB

$4996
USD

Quantity

Estimated Ship Date: 12/17/2022

**Shipping may be effected by COVID-19 pandemic

*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

Description 12 Series, 3/2 Selector Switch Valve, 1/4" NPT
Valve Type Directional Control
Series 12
Application General
Actuation Manual Selector Switch
Function 3/2
Default Position Normally Open
Return Detented
Thread Type NPT
Construction Spool & Sleeve
Mounting Inline
Ambient Temperature 40 to 175 F (4 to 80 C)
Ambient Temperature (Celsius) 4 to 80
Media Temperature 40 to 175 F (4 to 80 C)
Media Temperature (Celsius) 4 to 80
Fluid Media Filtered air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Operating Pressure (bar) 0.3 to 10
Length 1.46 in (37 mm)
Length (mm) 37
Width 4.6 in (118 mm)
Width (mm) 118
Height 1.26 in (32 mm)
Height (mm) 32
Valve Body Material Cast Aluminum
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Exhaust Pipe Size 1/4"
Avg Cv 0.9
Weight 0.37 lb (0.17 kg)
Weight (kg) 0.17
Weight 0.37 lbs (0.17 kg)
