Shuttle Valves

1968D2003



  • Two Inlets & One Outlet
  • Poppet construction
  • Low Maintenance
  • Tolerant of Dirty Air

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

1968D2003

$6592
USD

Quantity

Estimated Ship Date: 08/30/2022

**Shipping may be effected by COVID-19 pandemic

*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

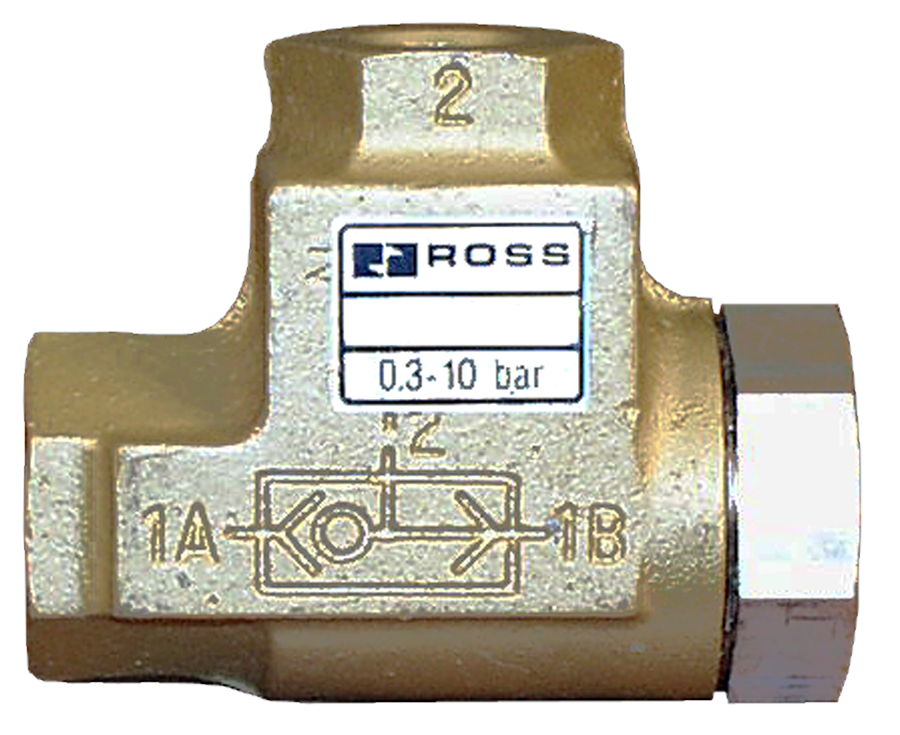

Description 19 Series Shuttle Valve, High Flow, 1/4" NPT
Valve Type Shuttle Valve
Series 19
Application High Flow
Actuation Pneumatic
Function 2/2
Thread Type NPT
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Construction Poppet
Mounting Inline
Avg Cv 2
Ambient Temperature -40 to 175 F (-40 to 80 C)
Ambient Temperature (Celsius) -40 to 80
Media Temperature -40 to 175 F (-40 to 80 C)
Media Temperature (Celsius) -40 to 80
Fluid Media Filtered Air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Operating Pressure (bar) 0.3 to 10
Length 2.64 in (67 mm)
Length (mm) 67
Width 1.25 in (32 mm)
Width (mm) 32
Height 2.13 in (54 mm)
Height (mm) 54
Weight 0.8 lb (0.4 kg)
Weight (kg) 0.4
Valve Body Material Cast Aluminum
Weight 0.8 lbs (0.36 kg)
