Flow Controls

1968F2004



  • Low profile, high capacity & right angle series available
  • Available with NPT & BSPP port threads
  • Low profile series includes slot & knob adjustment options
  • High capacity series includes inline & offset orientation options

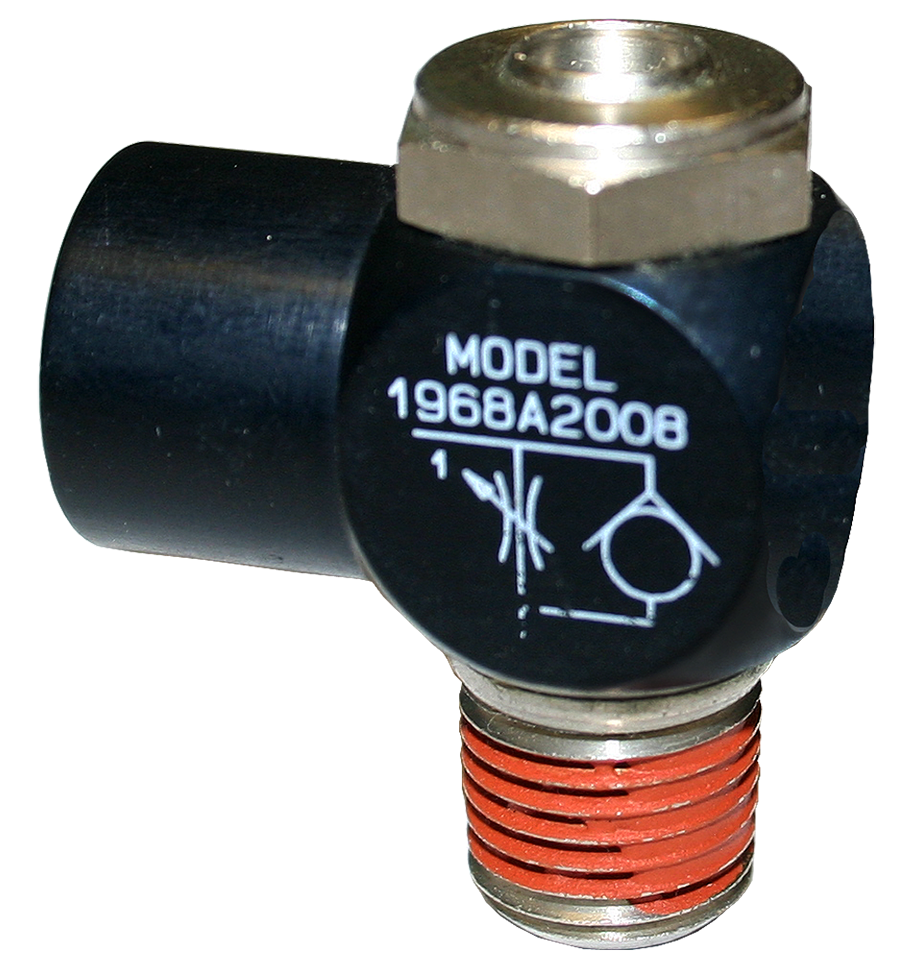

  • Right angle series includes slot & knob adjustment options

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

1968F2004

$1957
USD

Quantity

Estimated Ship Date: 08/16/2022

**Shipping may be effected by COVID-19 pandemic

*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

Description 19 Series Flow Control Valve, Slot Adjustment, Low Profile, 1/4" NPT
Valve Type Flow Control Valve
Series 19
Application General
Actuation Pneumatic
Function 2/2
Thread Type NPT
Construction Poppet
Mounting Inline
Fluid Media Filtered Air
Adjustment Slot
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Operating Pressure 150 psi (10.3 bar)
Operating Pressure (bar) 10.3
Valve Body Material Aluminum
Ambient Temperature 41 to 140 F (5 to 60 C)
Ambient Temperature (Celsius) 5 to 60
Media Temperature 41 to 140 F (5 to 60 C)
Media Temperature (Celsius) 5 to 60
Profile Low
Length 40 in (1.6 mm)
Length (mm) 1.6
Width (mm) 0.6
Weight (kg) 0.08
Width 16 in (0.6 mm)
Weight 0.18 lb (0.08 kg)
Avg Cv 0.5
Height 53 in (2.1 mm)
Height (mm) 2.1
Weight 0.18 lbs (0.08 kg)
