Flow Controls

1968A1108



  • Low profile, high capacity & right angle series available
  • Available with NPT & BSPP port threads
  • Low profile series includes slot & knob adjustment options
  • High capacity series includes inline & offset orientation options
  • Right angle series includes slot & knob adjustment options

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

1968A1108

$24.25

Quantity

Estimated Ship Date: 06/14/2023

**Shipping may be affected by post COVID-19 challenges

*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.

Need Help? No Problem!

Customer Service
1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

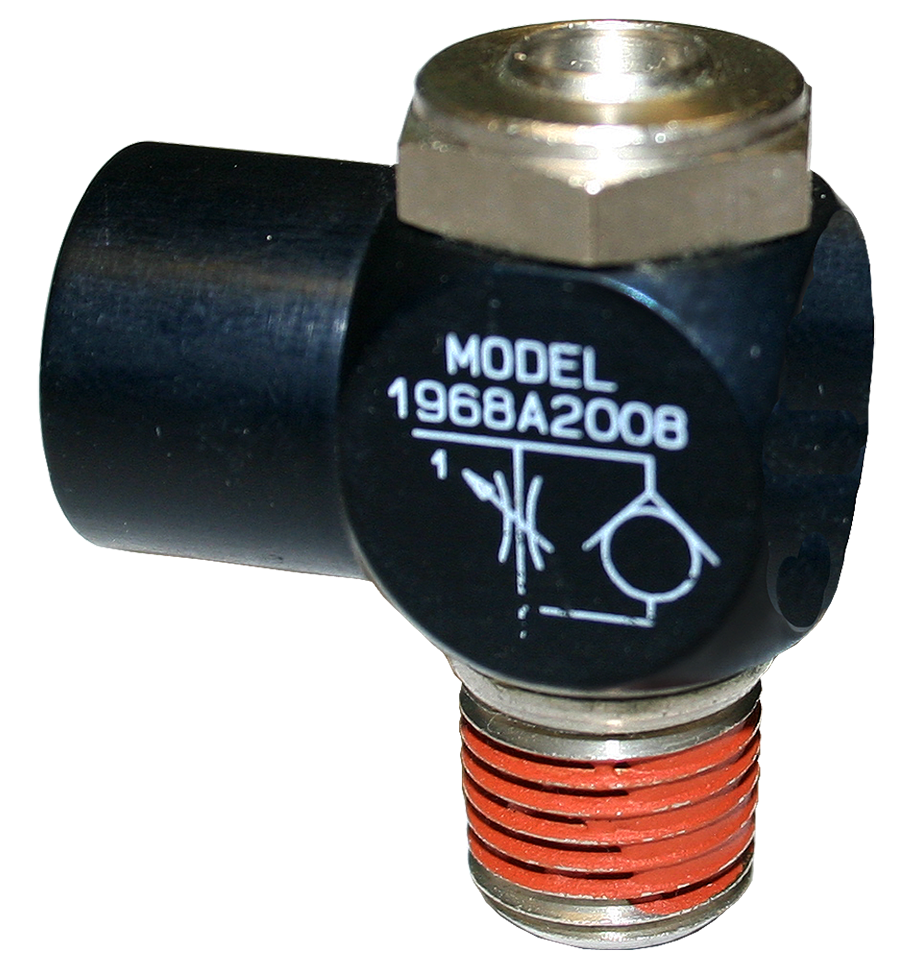

Description 19 Series Flow Control Valve, Slot Adjustment, Right Angle, 1/8" NPT
Valve Type Flow Control Valve
Series 19
Application General
Actuation Pneumatic
Function 2/2
Thread Type NPT
Inlet Pipe Size 1/8"
Outlet Pipe Size 1/8"
Construction Poppet
Mounting Inline
Avg Cv 0.3
Ambient Temperature 40 to 175 F (4 to 80 C)
Media Temperature 40 to 175 F (4 to 80 C)
Fluid Media Filtered Air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Length 0.63 in (16 mm)
Width 1.0 in (25 mm)
Height 1.4 in (36 mm)
Weight 0.06 lb (0.03 kg)
Valve Body Material Cast Aluminum
Adjustment Slot
Profile Right Angle
