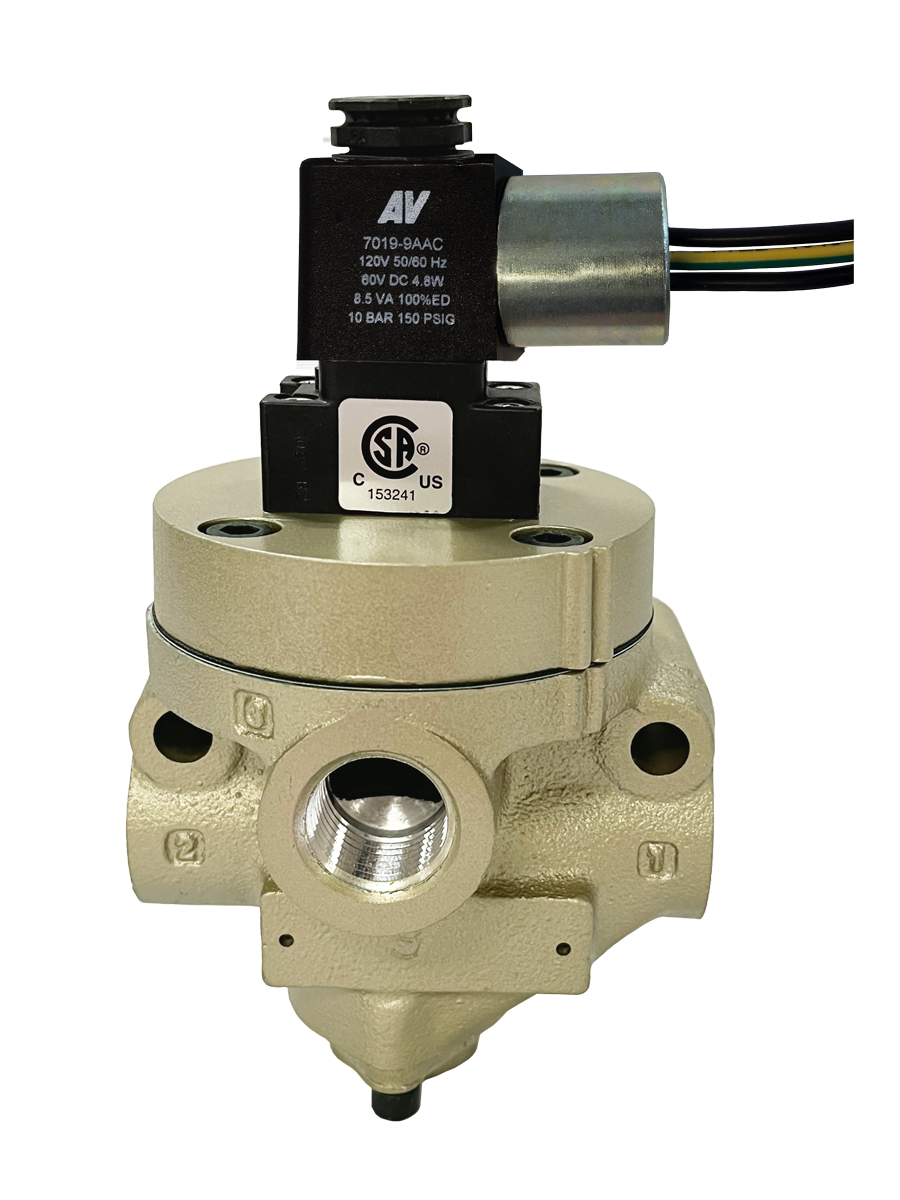

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B7001Z-4

  • Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
  • Differential Piston Design Delivers Fast and Consistent Response Times
  • Overwhelming Shifting Forces Provides No-Stick Operation
  • High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
  • Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life

Need Help? No Problem!

Customer Service

1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

Need Help? No Problem!

Customer Service

1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

Actuation Electrical
Construction Poppet
Mounting Inline
Manual Override Non-locking
Return Spring
Duty Rating Continous Duty
Ambient Temperature 0 to 122 F (-17 to 50 C)
Fluid Media Filtered Air
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Valve Body Material Cast Aluminum
Poppet/Spool Material Aluminum and Stainless Steel
Thread Type NPT
Pilot Type Internal
Default Position Normally Closed
Seal Material Fluorocarbon
Function 2/2
Application General
Media Temperature 40 to 175 F (4 to 80 C)
Voltage 120 VAC
Power Consumption 6.5 VA
Connection 1/2" Conduit, 30" Leads
Weight 11.1 lb (5.0 kg)
Inlet Pipe Size 1-1/4"
Outlet Pipe Size 1-1/4"
Length 6.63 in (168 mm)
Width 4.09 in (104 mm)
Height 10.64 in (270.4 mm)
Ports 1-2 Flow 29 Cv (29000 l/min)
