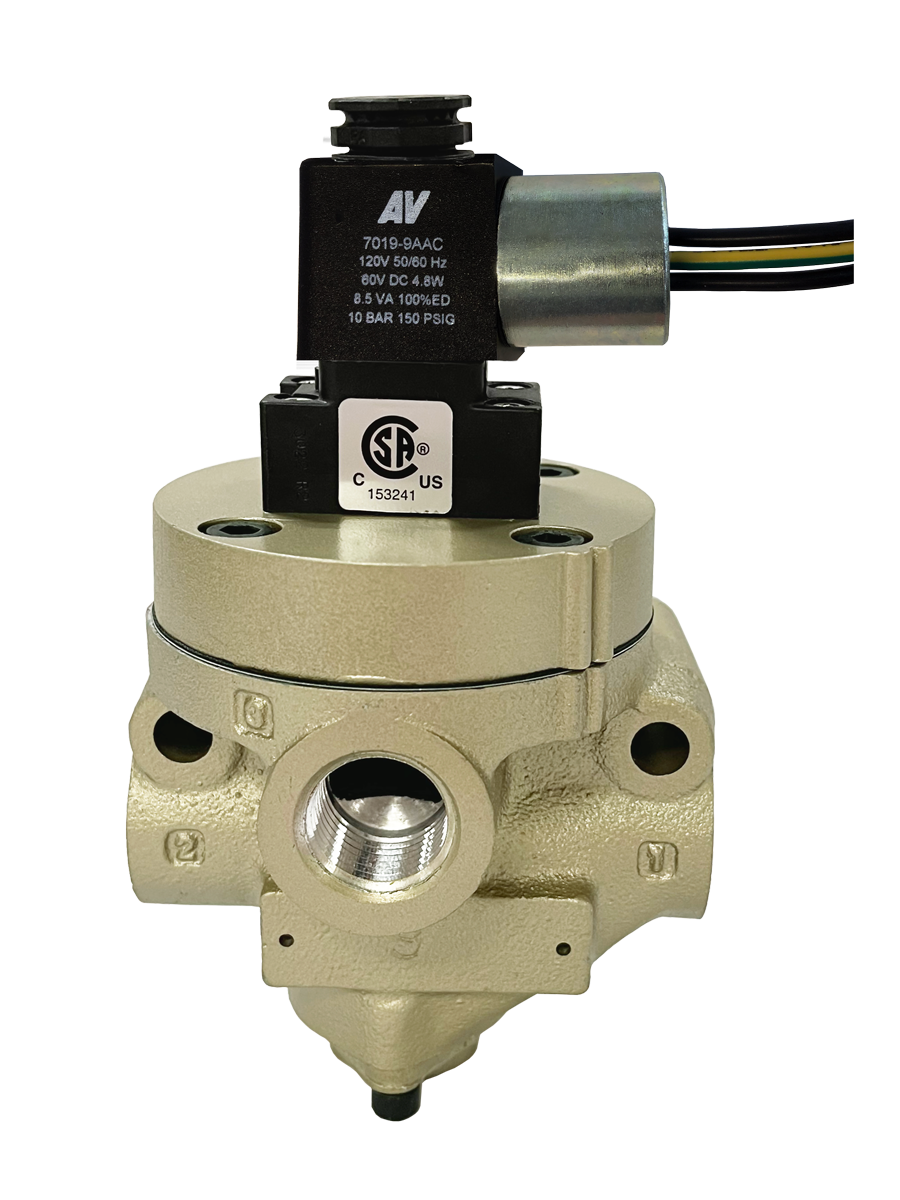

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B6052Z-4
- Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
- Differential Piston Design Delivers Fast and Consistent Response Times
- Overwhelming Shifting Forces Provides No-Stick Operation
- High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
- Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life
Product Information
| Actuation | Electrical |
| Construction | Poppet |
| Mounting | Inline |
| Manual Override | Non-locking |
| Return | Spring |
| Duty Rating | Continous Duty |
| Ambient Temperature | 0 to 122 F (-17 to 50 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Operating Pressure (bar) | 2 to 10 |
| Pilot Supply Minimum | Must be equal to or greater than inlet pressure |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum and Stainless Steel |
| Thread Type | NPT |
| Pilot Type | External |
| Default Position | Normally Closed |
| Seal Material | Buna-N |
| Function | 2/2 |
| Application | General |
| Ambient Temperature (Celcius) | -17 to 50 |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Voltage | 120 VAC |
| Power Consumption | 6.5 VA |
| Connection | 1/2" Conduit, 30" Leads |
| Weight | 11.1 lb (5.0 kg) |
| Inlet Pipe Size | 1" |
| Outlet Pipe Size | 1" |
| Length | 6.63 in (168 mm) |
| Width | 4.09 in (104 mm) |
| Height | 10.64 in (270.4 mm) |
| Ports 1-2 Flow | 20 Cv (20000 l/min) |
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B6052Z-4
Contact Us for a 3D Model
+
Low/High Temperatures, DIN & M12 Connection [21 Series]
2171B6052Z-4
Contact ROSS Controls for Ordering Information
+
