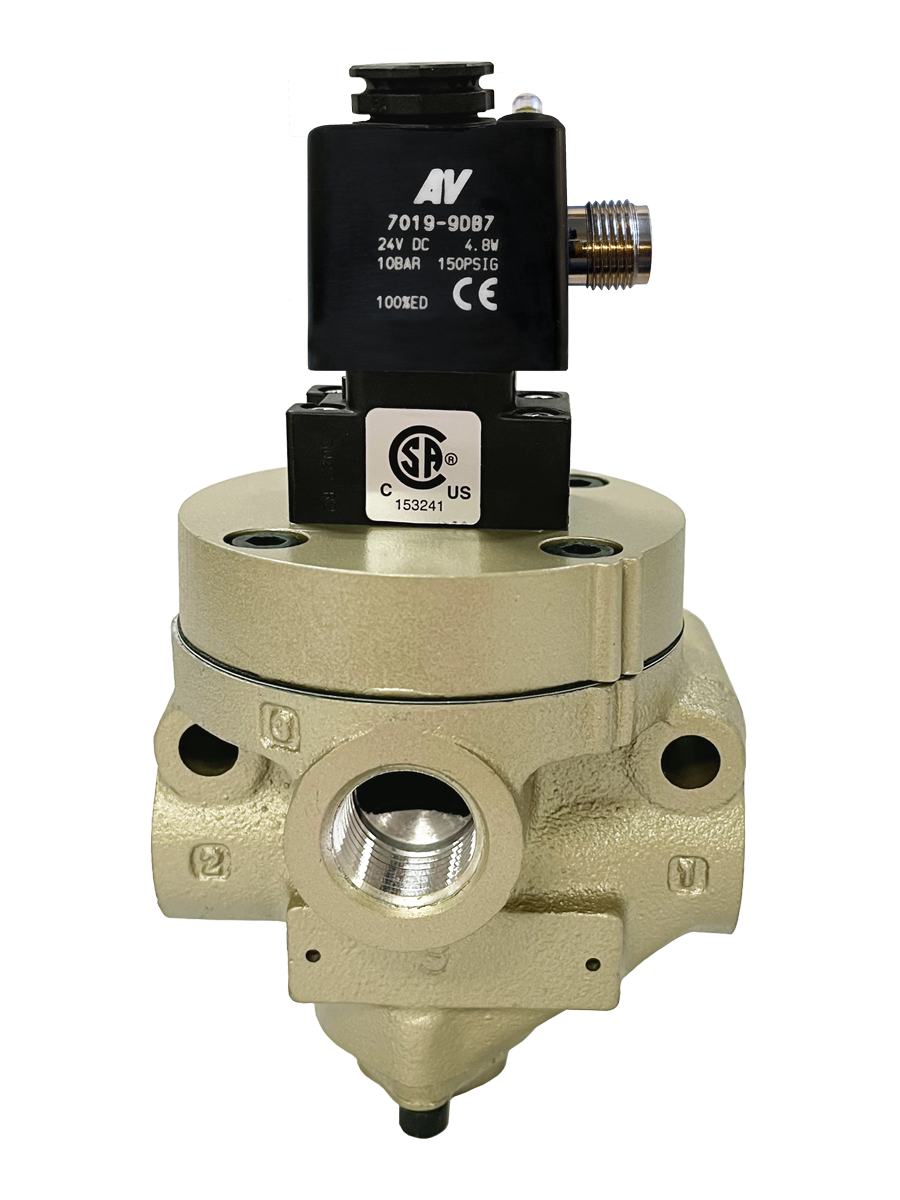

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B4002W-3

  • Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
  • Differential Piston Design Delivers Fast and Consistent Response Times
  • Overwhelming Shifting Forces Provides No-Stick Operation
  • High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
  • Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life

Need Help? No Problem!

Customer Service

1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS

Need Help? No Problem!

Customer Service

1-800-GET-ROSS

Technical Service
1-888-TEK-ROSS


Product Information

Actuation Electrical
Inlet Pipe Size 1/2"
Construction Poppet
Mounting Inline
Function 2/2
Manual Override Non-locking
Application General
Thread Type NPT
Outlet Pipe Size 1/2"
Ports 1-2 Flow 6.6 Cv (6500 l/min)
Pilot Type Internal
Return Spring
Voltage 24 VDC
Duty Rating Continous Duty
Power Consumption 4.8 Watts
Connection M12
Ambient Temperature 0 to 122 F (-17 to 50 C)
Media Temperature 40 to 175 F (4 to 80 C)
Fluid Media Filtered Air
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Length 4.56 in (116 mm)
Default Position Normally Closed
Width 3.11 in (79 mm)
Height 6.61 in (168 mm)
Weight 4.3 lb (2.0 kg)
Valve Body Material Cast Aluminum
Poppet/Spool Material Aluminum and Stainless Steel
Seal Material Buna-N
