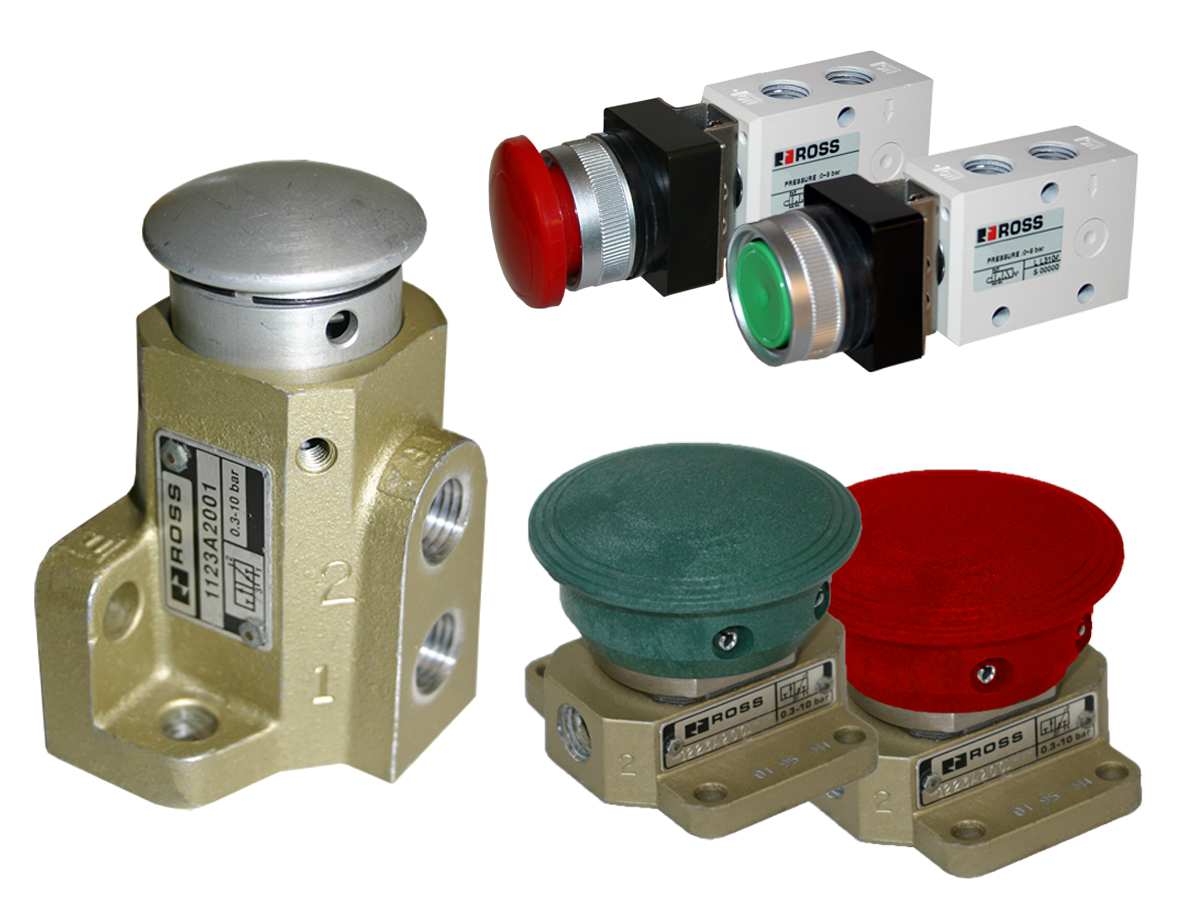

Palm & Push Button Valves 1223B1FPG
- Pushbutton Valves
- Palm Button Valves
- Heavy-Duty Palm Button Valves
1223B1FPG
$48.75
Quantity
Estimated Ship Date: 11/08/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | 12 |
| Application | General |
| Actuation | Manual Pushbutton |
| Function | 3/2 |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 1/8" |
| Outlet Pipe Size | 1/8" |
| Exhaust Pipe Size | 1/8" |
| Construction | Spool & Sleeve |
| Mounting | Inline |
| Avg Cv | 0.6 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 1.46 in (37 mm) |
| Width | 3.9 in (99 mm) |
| Height | 1.26 in (32 mm) |
| Weight | 0.28 lb (0.13 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum |
| Button Type | Flush |
| Button Color | Green |
+
Palm & Push Button Valves
1223B1FPG
Contact Us for a 3D Model
+
Palm & Push Button Valves
1223B1FPG
Contact ROSS Controls for Ordering Information
+
