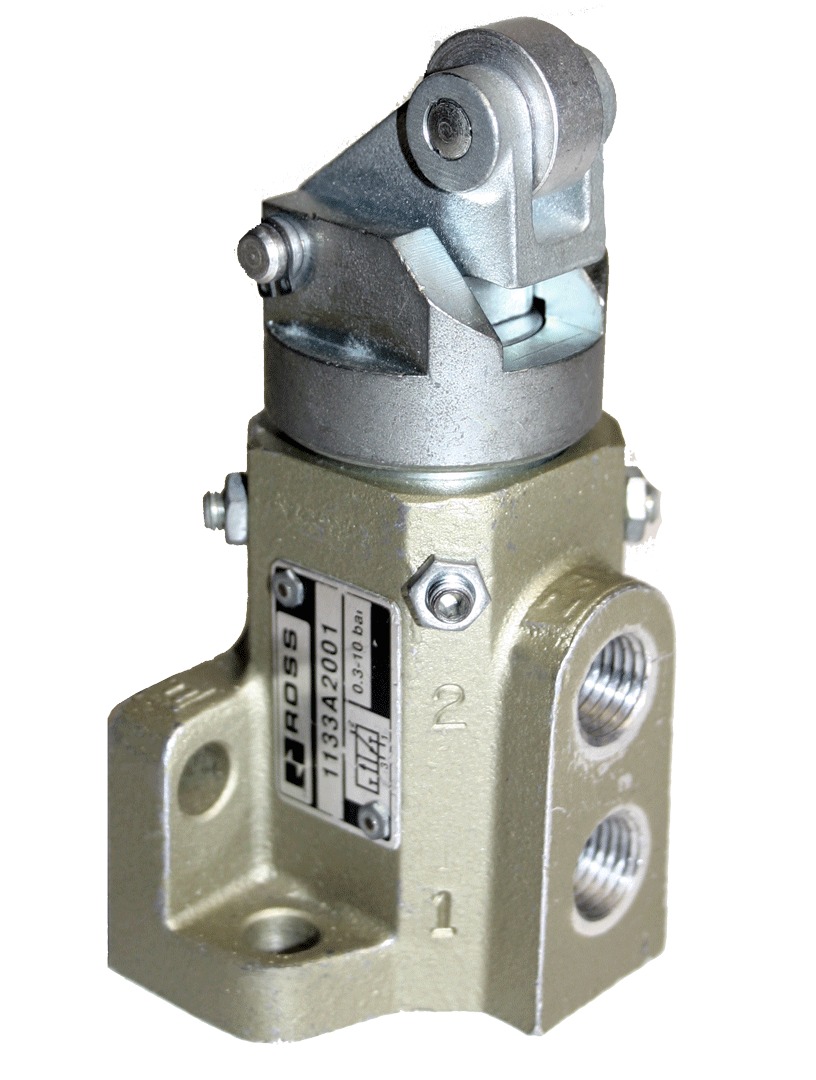

Cam & Plunger Valves 1133A2003
- 2/2 and 3/2, normally closed Valves
- Reliable poppet valve construction
- Side and bottom mounting flanges
- Rugged cast aluminum valve body
- Cam roller valves include 1- or 2-direction Roller
1133A2003
$151.00
Quantity
Estimated Ship Date: 08/20/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | 11 |
| Application | General |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 1/4" |
| Outlet Pipe Size | 1/4" |
| Exhaust Pipe Size | 1/4" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 0.5 |
| Ambient Temperature | -10 to 175 F (-23 to 80 C) |
| Media Temperature | -10 to 175 F (-23 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 1.82 in (46 mm) |
| Width | 2.76 in (70 mm) |
| Weight | 1.0 lb (0.5 kg) |
| Valve Body Material | Cast Aluminum |
| Actuation | Mechanical Plunger |
| Function | 3/2 |
| Default Position | Normally Open |
| Height | 3.38 in (86 mm) |
+
Cam & Plunger Valves
1133A2003
Contact Us for a 3D Model
+
Cam & Plunger Valves
1133A2003
Contact ROSS Controls for Ordering Information
+
