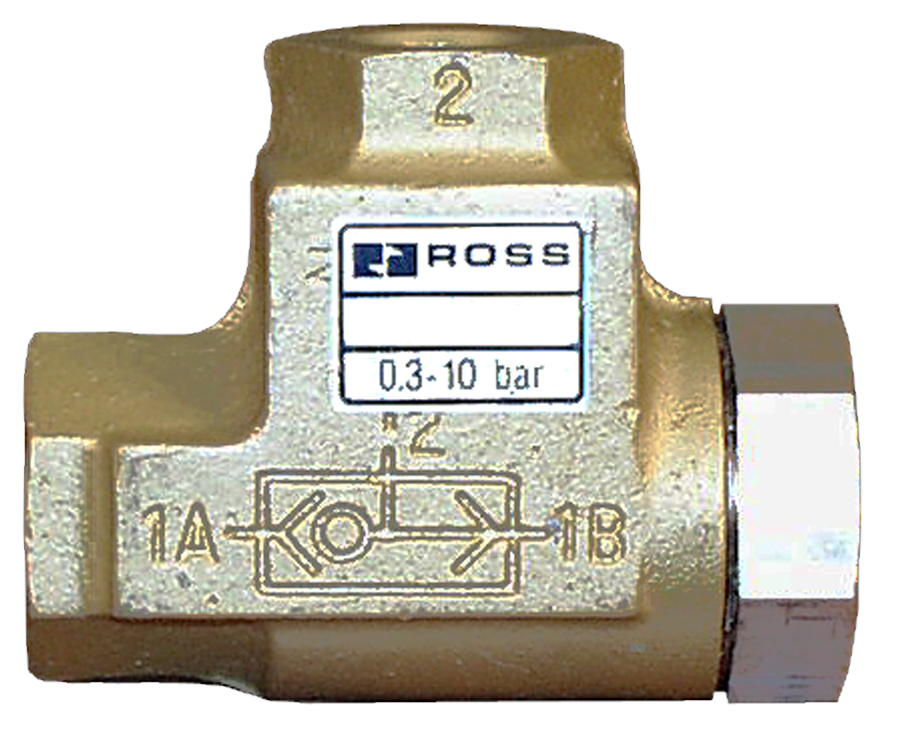

Shuttle Valves 1968D3003
- Two Inlets & One Outlet
- Poppet construction
- Low Maintenance
- Tolerant of Dirty Air
1968D3003
$67.25
Quantity
Estimated Ship Date: 11/13/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Shuttle Valve |
| Series | 19 |
| Application | High Flow |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Construction | Poppet |
| Mounting | Inline |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 2.64 in (67 mm) |
| Width | 1.25 in (32 mm) |
| Height | 2.13 in (54 mm) |
| Weight | 0.8 lb (0.4 kg) |
| Valve Body Material | Cast Aluminum |
| Inlet Pipe Size | 3/8" |
| Outlet Pipe Size | 3/8" |
| Avg Cv | 3 |
+
Shuttle Valves
1968D3003
Contact Us for a 3D Model
+
Shuttle Valves
1968D3003
Contact ROSS Controls for Ordering Information
+
