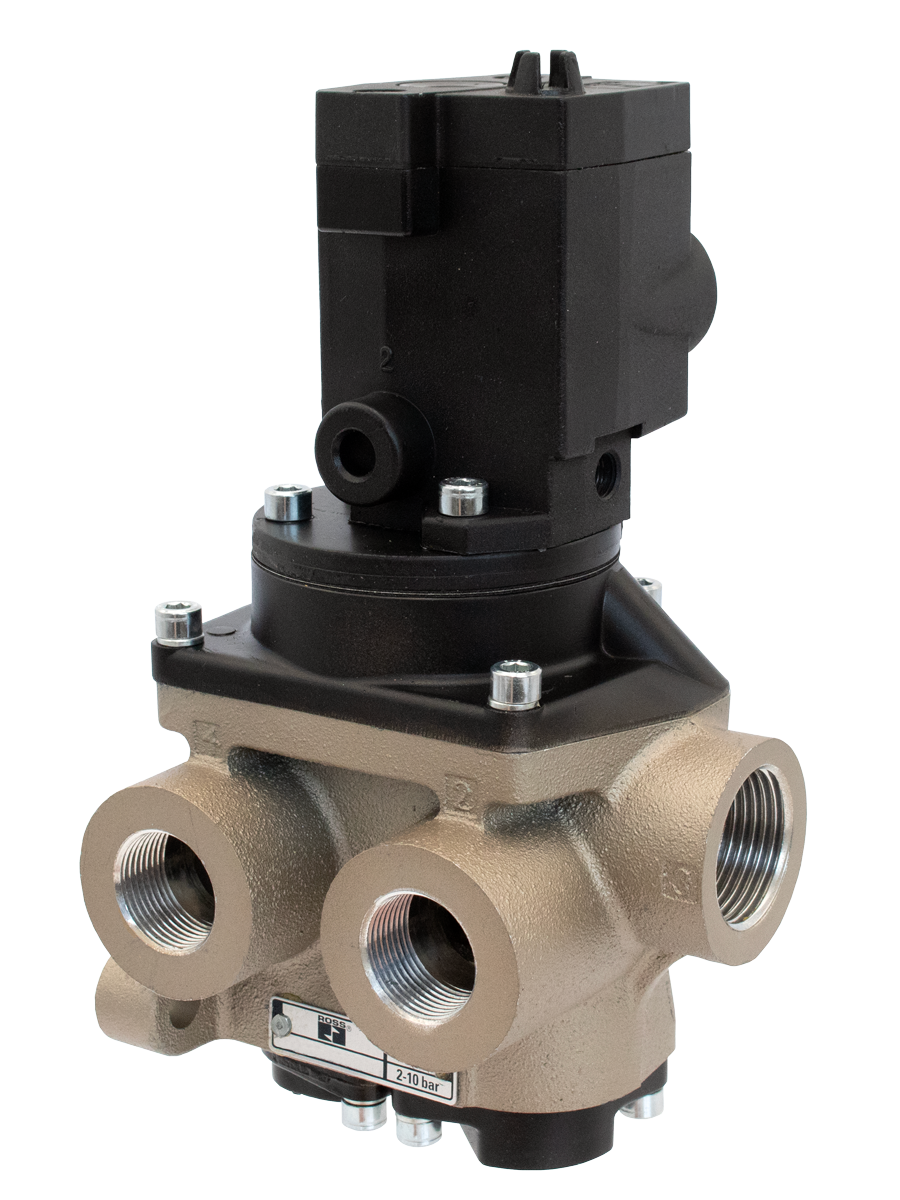

Standard Temperatures [Classic 27 Series] D2776B4011Z
- Poppet valves
- Inline mounted
- High Flow Rate
- Internal or external; easily field-convertible for use with an external pilot supply
- Consistent response time over the life of the valve
D2776B4011Z
$374.75
Quantity
Estimated Ship Date: 12/30/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | 27 |
| Application | General |
| Actuation | Electrical |
| Voltage | 110/120 VAC |
| Function | 4/2 Single Solenoid |
| Default Position | Normally Open |
| Return | Spring |
| Thread Type | G |
| Inlet Pipe Size | 1/2" |
| Outlet Pipe Size | 1/2" |
| Exhaust Pipe Size | 1/2" |
| Construction | Poppet |
| Mounting | Inline |
| Connection | Hardwired |
| Pilot Type | Internal/External |
| Manual Override | Non-locking |
| Size | 3/8" |
| Cv (1-2) | 3.1 |
| Cv (1-4) | 3.1 |
| Cv (2-3) | 7.3 |
| Cv (4-3) | 7.3 |
| Duty Rating | Continuous Duty |
| Power Consumption | 190 VA inrush, 40 VA holding on 50 or 60 Hz |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Length | 3.75 in (95 mm) |
| Width | 3.91 in (99 mm) |
| Height | 7.14 in (181 mm) |
| Weight | 3.0 lb (1.4 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal, Stainless Steel |
| Seal Material | Buna-N |
+
Standard Temperatures [Classic 27 Series]
D2776B4011Z
Contact Us for a 3D Model
+
Standard Temperatures [Classic 27 Series]
D2776B4011Z
Contact ROSS Controls for Ordering Information
+
