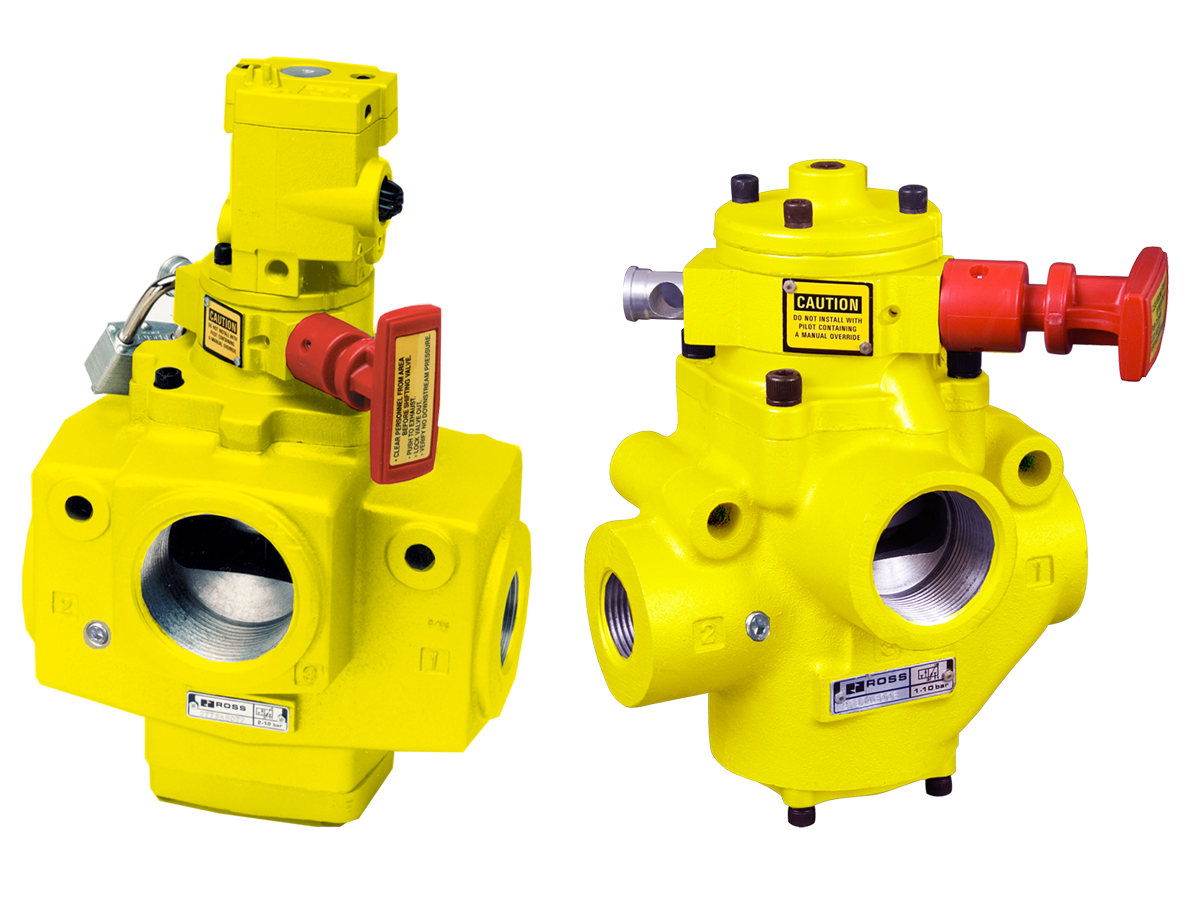

27 Series Lockout L-O-X® Valves YD2773A9072Z
- Dirt tolerant, wear compensating for quick response and high flow capacity
- Operated like the manual lockout L-O-X® valve, the position of the red handle indicates instantaneous full flow pressurizing or exhausting capability
- Allows the air supply to be turned on or off by remote electrical control when valve is not in the lockout position
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
- Includes integrated sensor port for pressure verification with either a visual pop-up indicator or electrical pressure switch
YD2773A9072Z
Quantity
Estimated Ship Date: 11/30/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
Series | 27 Series |
Actuation | Electrical |
Function | 3/2 Single Solenoid |
Soft Start | Not Included |
Construction | Poppet |
Mounting | Inline |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Media Temperature | 40 to 175 F (4 to 80 C) |
Fluid Media | Filtered Air |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Acetal and Stainless Steel |
Seal Material | Buna-N |
Safety Category | Category 1 |
PL Rating | PL c |
Safety Integrity Level | SIL 2 |
EAC Declaration | Yes |
CSA/UL Certification | Yes |
Voltage | 110 VAC |
Thread Type | G |
Operating Pressure | 30 to 150 psig (1 to 10 bar) |
Exhaust Size | 2-1/2" |
Body Size | 2" |
Length | 9.03 in (229 mm) |
Width | 7.32 in (186 mm) |
Height | 13.65 in (347 mm) |
Weight | 17.5 lb (7.9 kg) |
Inlet Size | 2" |
Outlet Size | 2" |
Cv (2-3) | 70 |
Cv (1-2) | 70 |
