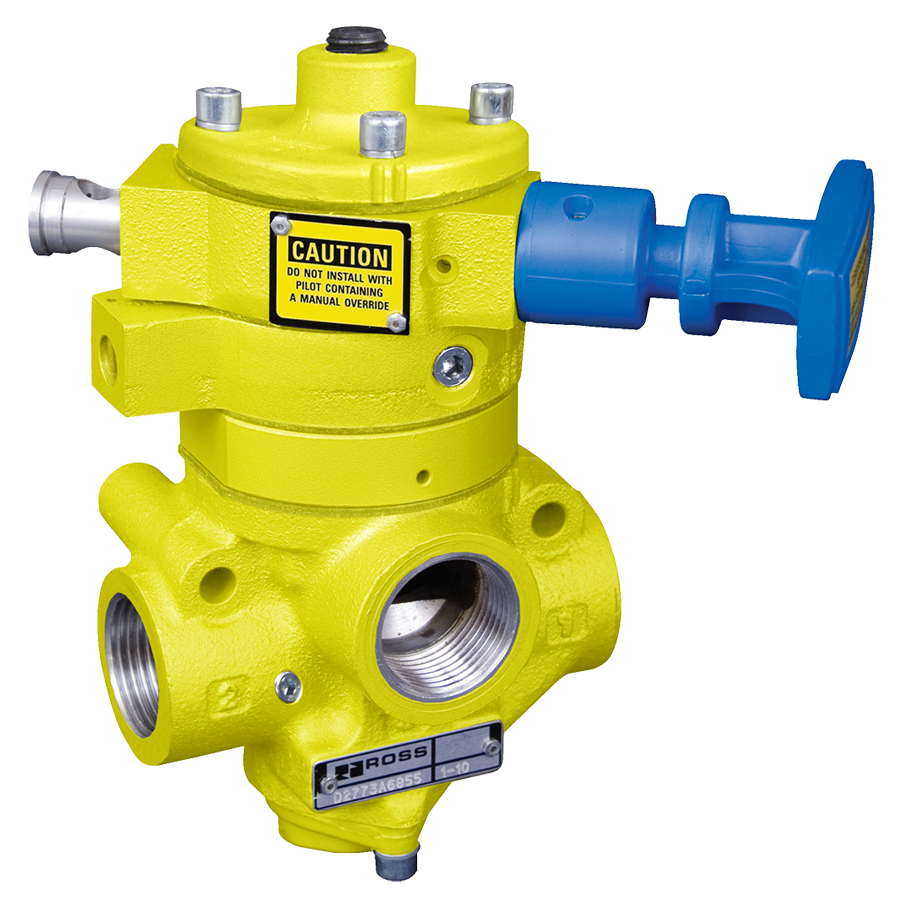

27 Series Lockout L-O-X® Valves & Soft Start EEZ-ON® Y2783B4055
- Dirt tolerant, wear compensating for quick response and high flow capacity
- Operated like the manual lockout L-O-X® valve, the position of the blue handle indicates instantaneous full flow pressurizing or exhausting capability
- Allows the air supply to be turned on or off by remote electrical control when valve is not in the lockout position
- An adjustable restriction within the EEZ-ON®valve determines the rate of downstream pressure buildup, and consequently the time delay for the full opening of the EEZ-ON® valve
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
Y2783B4055
Quantity
Estimated Ship Date: 11/12/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
Series | 27 Series |
Soft Start | Included |
Construction | Poppet |
Thread Type | NPT |
Mounting | Inline |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Media Temperature | 40 to 175 F (4 to 80 C) |
Fluid Media | Filtered Air |
Operating Pressure | 15 to 150 psig (1 to 10 bar) |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Acetal and Stainless Steel |
Seal Material | Buna-N |
Safety Category | Category 1 |
PL Rating | PL c |
Safety Integrity Level | SIL 2 |
EAC Declaration | Yes |
CSA/UL Certification | Yes |
Actuation | Pneumatic |
Function | 3/2 Single Pilot |
Exhaust Size | 1" |
Body Size | 3/4" |
Height | 7.48 in (190.1 mm) |
Weight | 4.8 lb (2.2 kg) |
Inlet Size | 1/2" |
Outlet Size | 1/2" |
Length | 4.45 in (113 mm) |
Width | 3.59 in (91 mm) |
Cv (2-3) | 13 |
Cv (1-2) | 10 |
