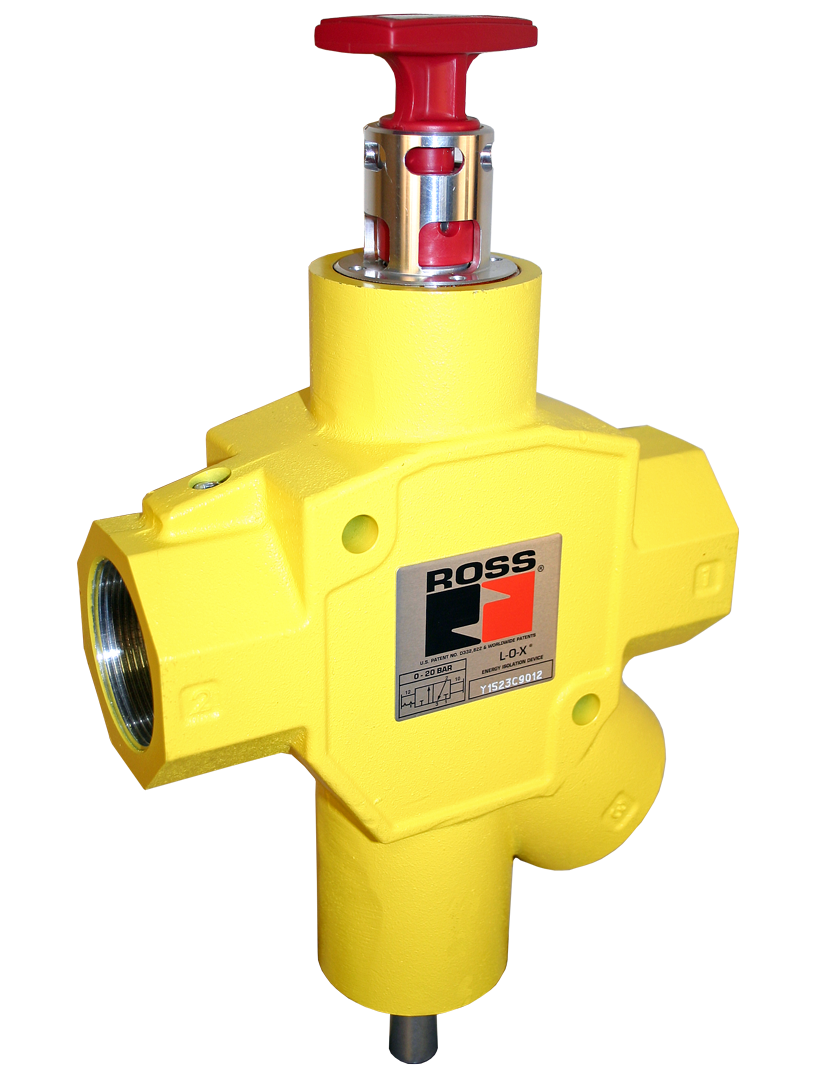

15 Series Lockout L-O-X® Valves YD1523C9012
- Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF (closed) position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
- Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
YD1523C9012
$549.75
Quantity
Estimated Ship Date: 05/27/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Series | 15 Series High-Capacity |
| Actuation | Manual |
| Function | 3/2 |
| Soft Start | Not Included |
| Construction | Spool |
| Valve Body Material | Cast Aluminum |
| Thread Type | G |
| Inlet Size | 2 |
| Outlet Size | 2 |
| Exhaust Size | 2" |
| Body Size | 2 |
| Mounting | In-line |
| Length | 8.2 in (208.3 mm) |
| Width | 3.0 in (76.2 mm) |
| Height | 14.82 in (376.4 mm) |
| Weight | 8.3 |
| Ports 1-2 Flow | 40.0 Cv (39000 Nl/min) |
| Ports 1-2 Flow (Nl/min) | 39000 |
| Ports 2-3 Flow | 52.0 Cv (51000 Nl/min) |
| Ports Flow 2-3 (Nl/min) | 51000 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Fluorocarbon |
| Safety Category | Category 1 |
| PL Rating | PL c |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
+
15 Series Lockout L-O-X® Valves
YD1523C9012
Contact Us for a 3D Model
+
15 Series Lockout L-O-X® Valves
YD1523C9012
Contact ROSS Controls for Ordering Information
+
