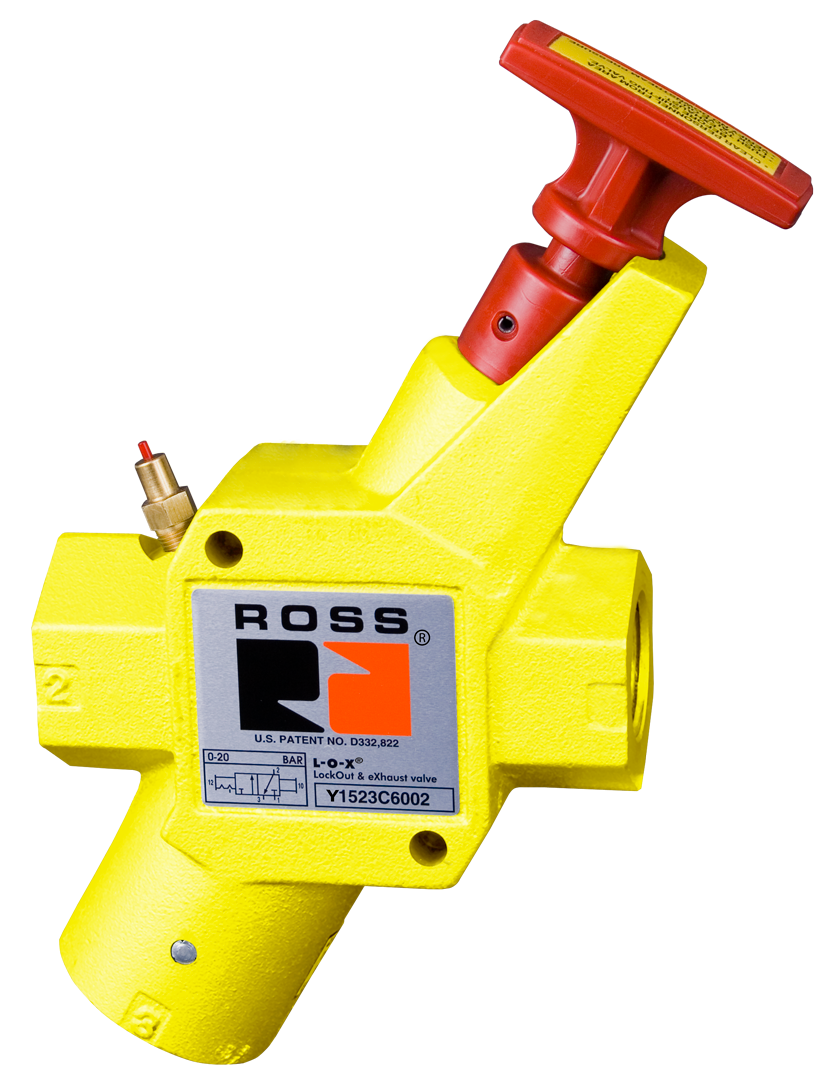

15 Series Lockout L-O-X® Valves Y1523C5002
- Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF (closed) position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
- Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
Y1523C5002
$161.25
Quantity
Estimated Ship Date: 11/06/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Actuation | Manual |
| Function | 3/2 |
| Soft Start | Not Included |
| Construction | Spool |
| Thread Type | NPT |
| Mounting | In-line |
| Fluid Media | Filtered Air |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Fluorocarbon |
| Safety Category | Category 1 |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
| Valve Body Material | Cast Aluminum |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| PL Rating | PL c |
| Series | 15 Series Classic |
| Operating Pressure | 0 to 200 psig (0 to 14 bar) |
| Inlet Size | 3/4 |
| Outlet Size | 3/4 |
| Body Size | 1 |
| Width | 2.25 in (57 mm) |
| Exhaust Size | 1-1/4" |
| Height | 10.76 in (273 mm) |
| Length | 7.72 in (196 mm) |
| Ports 1-2 Flow (Nl/min) | 13000 |
| Ports 2-3 Flow | 9.0 Cv (8900 Nl/min) |
| Ports Flow 2-3 (Nl/min) | 8900 |
| Weight | 3.0 |
| Ports 1-2 Flow | 13 Cv (13000 Nl/min) |
+
15 Series Lockout L-O-X® Valves
Y1523C5002
Contact Us for a 3D Model
+
15 Series Lockout L-O-X® Valves
Y1523C5002
Contact ROSS Controls for Ordering Information
+
