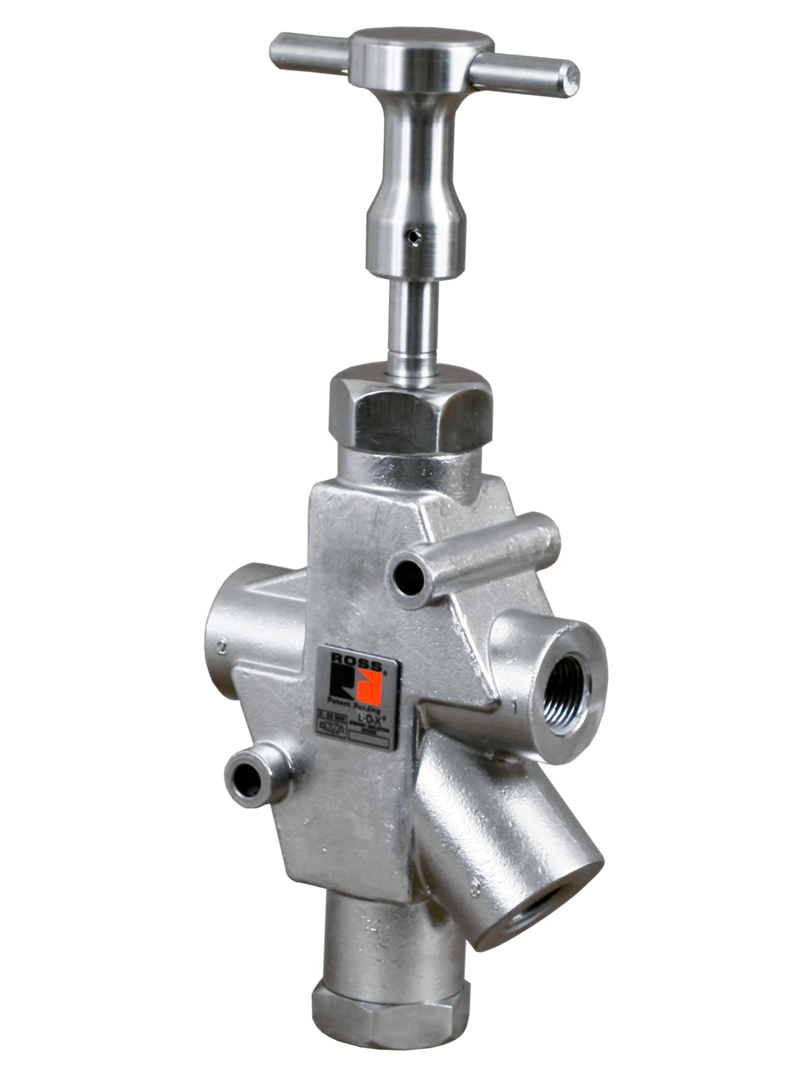

15 Series Lockout L-O-X® Valves 1523B5004
- Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
- Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
- Design only allows the valve to be lockable in the OFF (closed) position
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
- Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
Product Information
Series | 15 Series Stainless Steel |
Actuation | Manual |
Function | 3/2 |
Soft Start | Not Included |
Construction | Spool |
Valve Body Material | 316 Stainless Steel |
Thread Type | NPT |
Inlet Size | 3/4 |
Outlet Size | 3/4 |
Exhaust Size | 1" |
Body Size | 1 |
Mounting | In-line |
Length | 3.54 in (89.9 mm) |
Width | 2.1 in (53.4 mm) |
Height | 14.05 in (356.9 mm) |
Weight | 13.0 |
Ports 1-2 Flow | 14.0 Cv (14000 Nl/min) |
Ports 1-2 Flow (Nl/min) | 14000 |
Ports 2-3 Flow | 17.0 Cv (17000 Nl/min) |
Ports Flow 2-3 (Nl/min) | 17000 |
Ambient Temperature | 30 to 175 F (-1 to 80 C) |
Media Temperature | 30 to 175 F (-1 to 80 C) |
Fluid Media | Filtered Air |
Operating Pressure | 0 to 300 psig (0 to 20.7 bar) |
Poppet/Spool Material | Stainless Steel |
Seal Material | Fluorocarbon |
Safety Category | Category 1 |
PL Rating | PL c |
DGUV Certification | No |
CE Certification | No |
EAC Declaration | Yes |
CSA/UL Certification | No |
