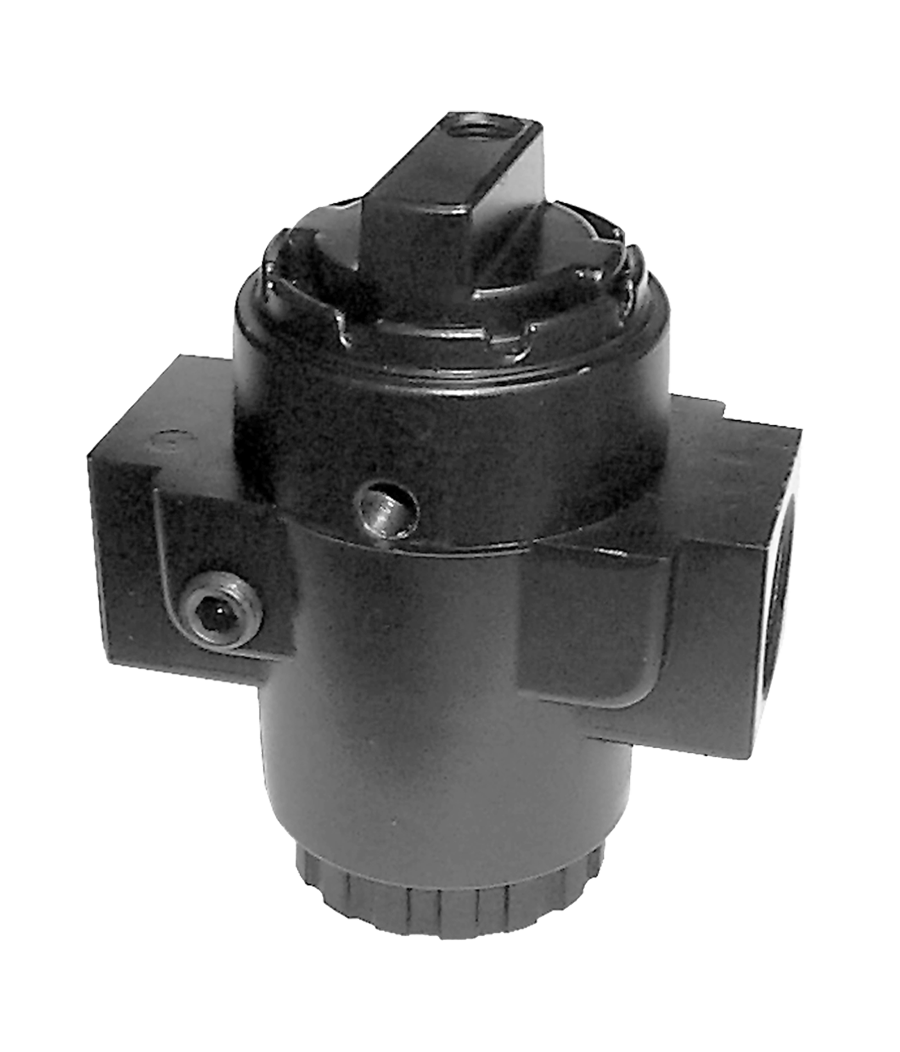

High-Flow Series C5X00D6012
- Inline relief valve
- Diaphragm construction
- Self-relieving
C5X00D6012
$672.50
Quantity
Estimated Ship Date: 05/15/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| PORT SIZE | 1 |
| PORT THREAD | BSPP |
| RELIEVING | Self-Relieving |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 200 (0 - 14) |
| PORT TYPE | Threaded Port |
| FLOW OPTION | Standard |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Inline |
| MAXIMUM FLOW | 450 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 200 psig (14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 200 (0 - 13.8) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
High-Flow Series
C5X00D6012
Contact Us for a 3D Model
+
High-Flow Series
C5X00D6012
Contact ROSS Controls for Ordering Information
+
