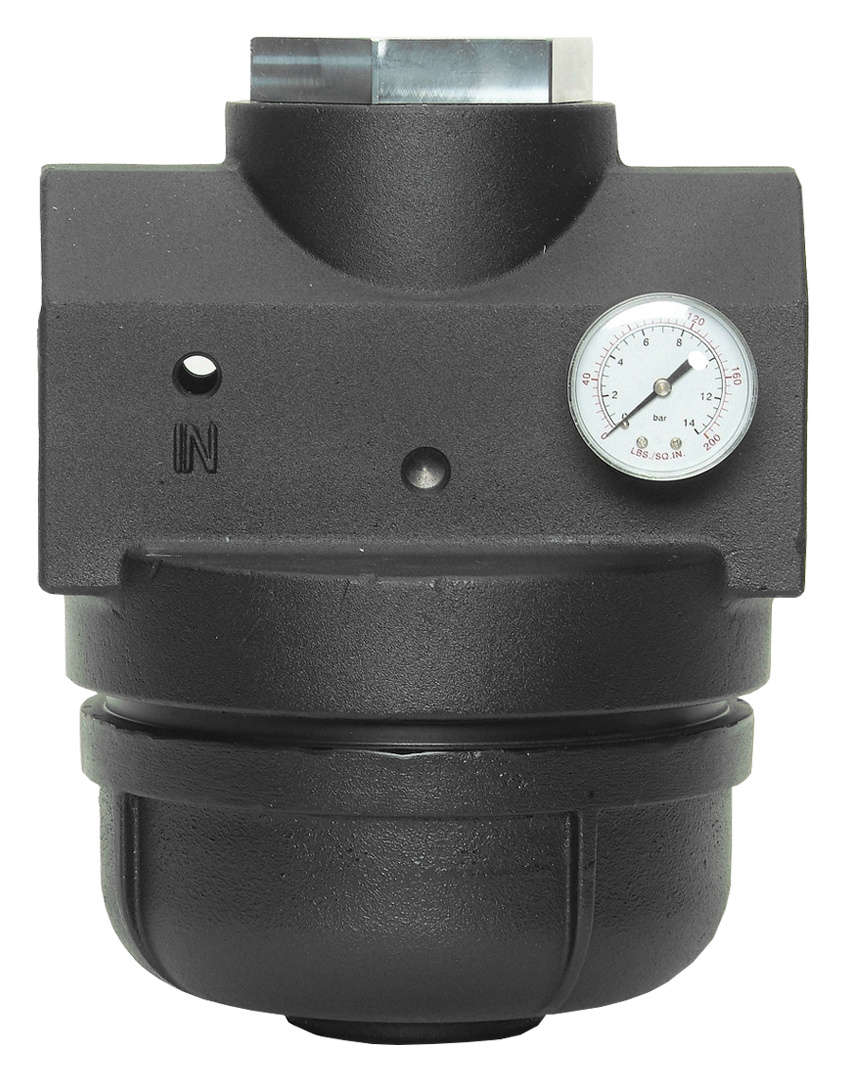

High Capacity Series Remote Pilot Reg C5211B9008
- Inline high-relief remote pilot options
- Diaphragm & piston construction options
- Self-relieving
C5211B9008
$1,987.50
Quantity
Estimated Ship Date: 06/10/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| PORT SIZE | 3 |
| PORT THREAD | BSPP |
| RELIEVING | Self-Relieving |
| PILOT | Remote |
| FLOW OPTION | Standard |
| ADJUSTMENT | Remove Pilot |
| GAUGE psig (bar) | 0 - 200 (0 - 13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Inline |
| MAXIMUM FLOW | 4000 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 200 (0 - 13.8) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
High Capacity Series Remote Pilot Reg
C5211B9008
Contact Us for a 3D Model
+
High Capacity Series Remote Pilot Reg
C5211B9008
Contact ROSS Controls for Ordering Information
+
