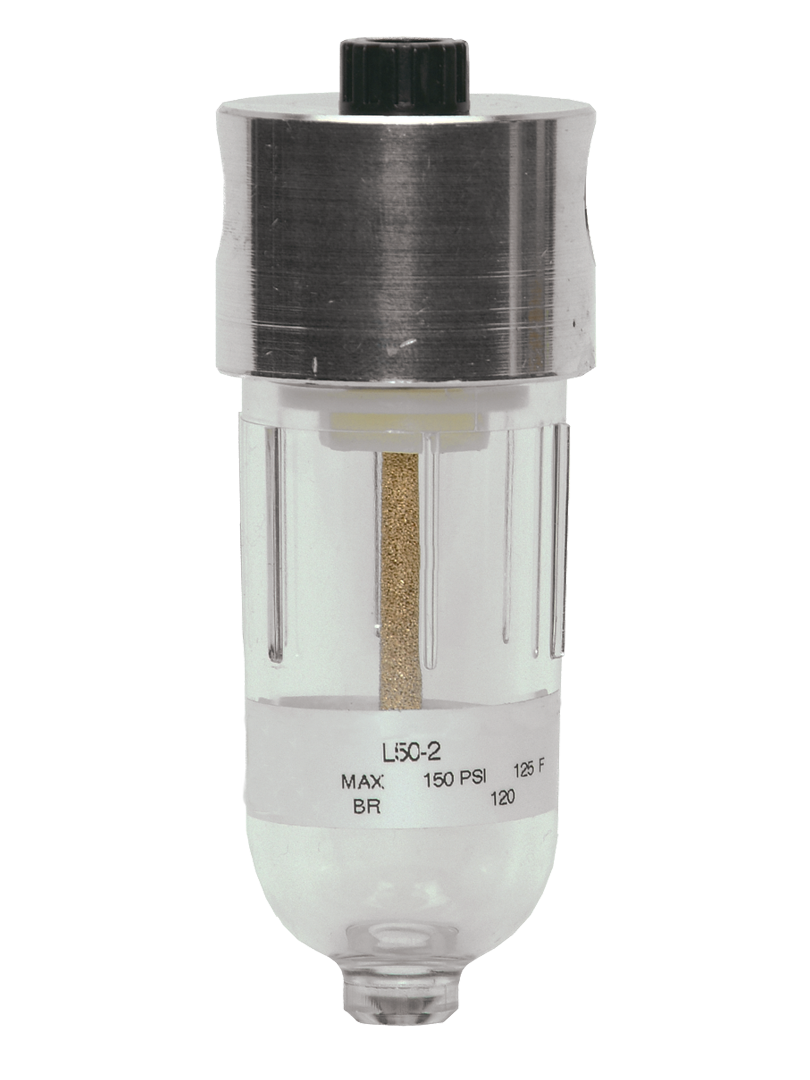

Miniature Series C5111B2012
- Inline mounting
- High-strength polycarbonate plastic bowl, or aluminum bowl
- Low-flow models are designed to deliver oil in extremely low-flow less than 1 scfm (0.5 l/s) situations
- Wick-feed design in both high-flow and low-flow lubricators
- Internal tamper-resistant adjustment
C5111B2012
$67.00
Quantity
Estimated Ship Date: 06/25/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| PORT SIZE | 1/4 |
| PORT THREAD | BSPP |
| FILL METHOD | Fill Port |
| CONSTRUCTION | Wick-Feed |
| PORT TYPE | Threaded Ports |
| BOWL TYPE | Polycarbonate |
| BOWL SIZE | 2 oz (60 ml) |
| MOUNTING | Inline |
| FLOW TYPE | Low Flow |
| MAXIMUM FLOW | 7 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 150 psig (10 bar) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
Miniature Series
C5111B2012
Contact Us for a 3D Model
+
Miniature Series
C5111B2012
Contact ROSS Controls for Ordering Information
+
