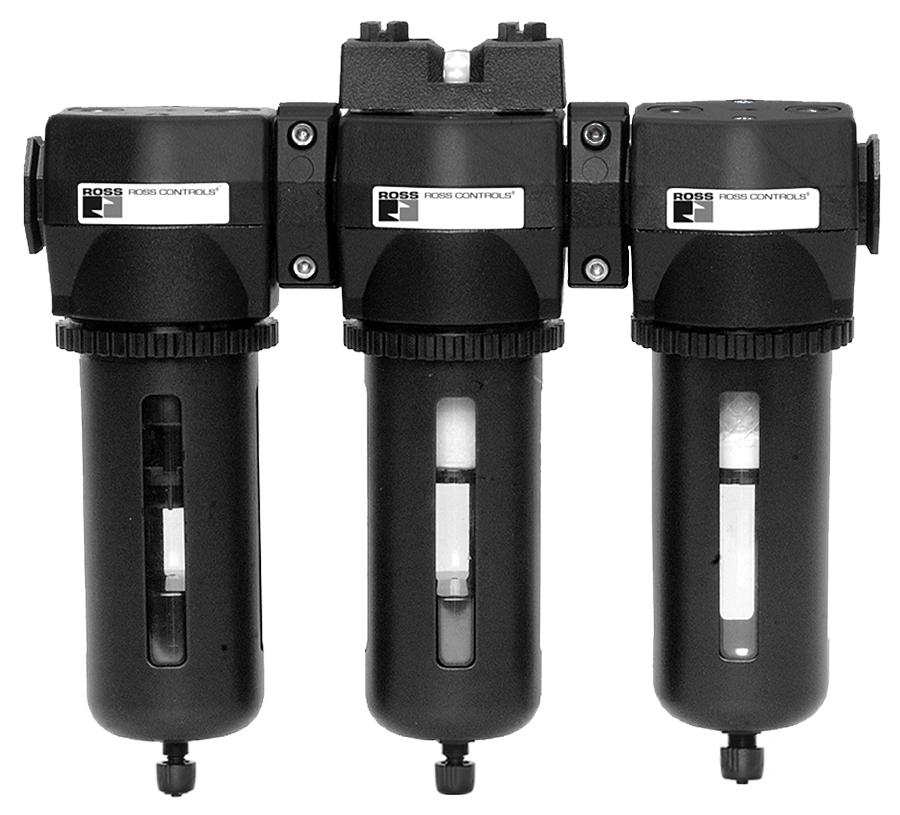

MD4 Series MD4CAP3BB252A
- Adsorbing filter with activated carbon element
- Modular mounting
- Polycarbonate plastic bowls with steel shatterguards, metal bowls, or extended metal bowls for coalescing and adsorbing filters with higher flow filter element
- Automatic drains for general purpose and coalescing filters, internal float drain, or manual drain for adsorbing filter
- Differential pressure gauge on coalescing filter indicates when element needs changing
MD4CAP3BB252A
$765.00
Quantity
Estimated Ship Date: 05/15/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| PORT SIZE | 3/4 |
| PORT THREAD | NPT |
| FILTER DRAIN TYPE | Internal Automatic |
| FILTER BOWL TYPE | Metal |
| FILTER BOWL SIZE | 9 oz (266 ml) |
| COALESCING FILTER MATERIAL | Borosilicate Glass |
| COALESCING FILTER TYPE | 0.01 µm |
| COALESCING FILTER BOWL TYPE | Metal |
| COALESCING FILTER BOWL SIZE | 15 oz (443 ml) |
| ADSORBING FILTER BOWL TYPE | Metal |
| ADBSORBING FILTER BOWL SIZE | 15 oz (443 ml) |
| PORT TYPE | Threaded Port |
| MOUNTING | Modular |
| MAXIMUM FLOW | 205 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | 15 to 200 psig (1 to 14 bar) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD4 Series
MD4CAP3BB252A
Contact Us for a 3D Model
+
MD4 Series
MD4CAP3BB252A
Contact ROSS Controls for Ordering Information
+
