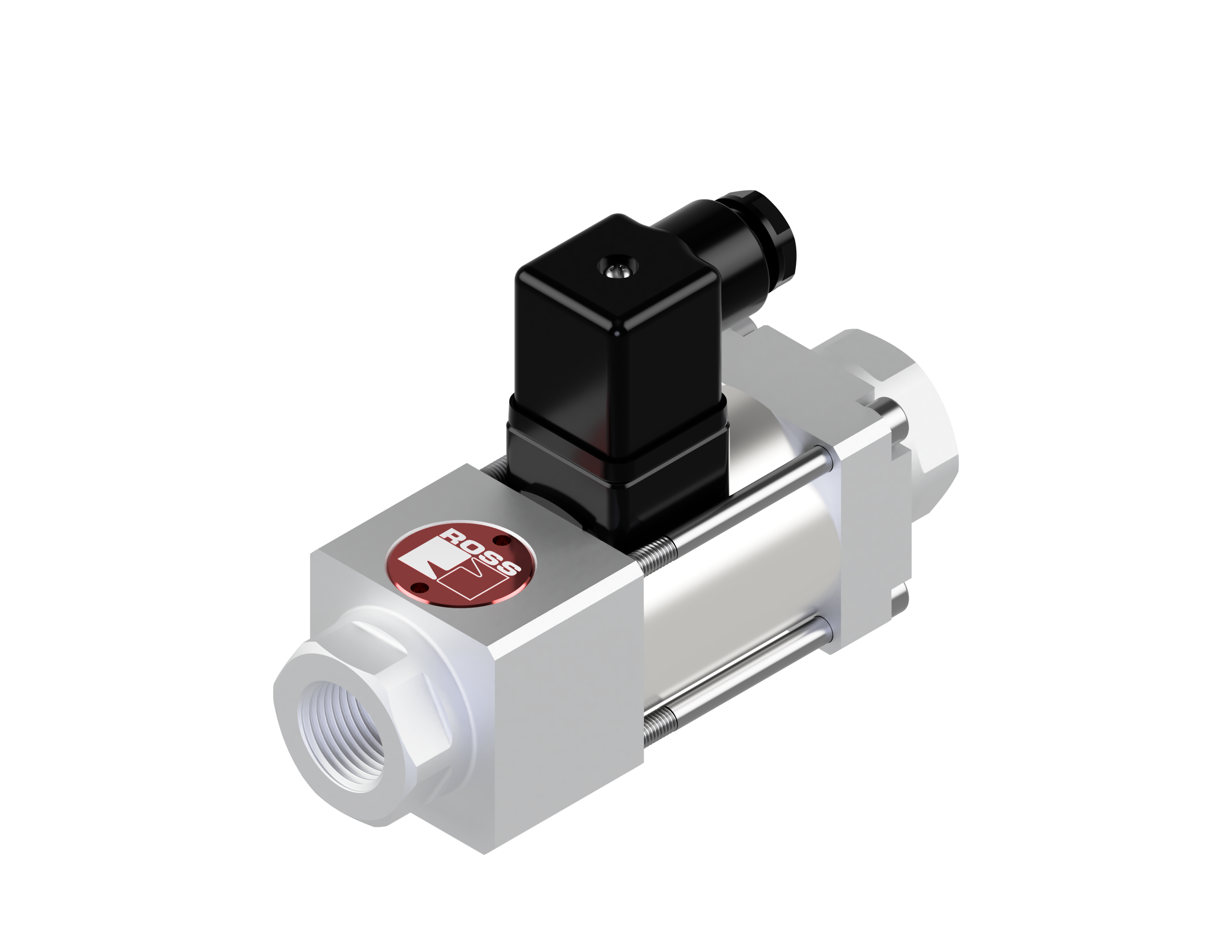

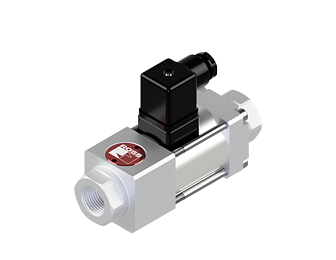

ECO - DN08 (2/2-Way direct acting) Series ECO, electromagnetic, coaxial control tube and rotating valve seat

Actual product may differ from above image. Product details should be verified before purchase.

ROSS Coaxial Valves – Reliable, Versatile, and Efficient

ROSS Coaxial Valves are designed for demanding industrial applications where fast response times, high flow rates, and reliability are essential.

The Series ECO - (DN08) is available as 2/2- or 3/2-way valves, either direct acting or externally controlled, offering flexible solutions for various applications.
Suitable service kits are available on request.

Media	liquid, highly viscous, contaminated, aggressive and abrasive media as well as neutral and reactive gases
Spherical valve seat	4-way rotation ensures longer service life and high flow rate
Fast and precise control	efficient process control, optimized system performance
Customized design	enables versatile use and different media
Maintenance	in many cases, it is not necessary to remove the coaxial valve for maintenance

For enhanced functionality, a wide range of Accessories for Coaxial Valves is available.

OPEN CONFIGURATOR

GENERAL	Sizes	DN08
	Construction design	coaxial control tube and rotating valve seat
	Functions	2/2- and 3/2-Way, normally closed NC or normally open NO
	Operating mode	direct acting, electromagnetic
	Mounting position	any
	Port Size	G¼ - G¾; NPT¼ - NPT¾
	kv-ø-Value	max. 2,5 m³/h
VALVE BODY	Material	aluminium blank; special design on request
CONSTRUCTION MATERIAL	Valve seat	PTFE, others on request
	Sealing material	FKM, on demand EPDM, NBR and others available on request
	Materials in contact with media	aluminium blank; stainless steel on request
	Control tube	stainless steel
OPERATING CONDITIONS	Operating pressure*	0- 40 bar, other pressure on request
	Back pressure**	max. 0 - 16 bar, higher back pressure on request
	Vacuum (special design)	< 1* 10-6 mbar*l/s
	Ambient temperature	-10°C to +50°C, other temperatures on request
	Media temperature	-10°C to 100°C, other temperatures on request
ELECTRICAL PARAMETER	Voltage	24 VDC / 230 V 50-60 Hz (with external rectifier), special voltage on request
	Drive	DC solenoid housing steel, surface-coated. Reset: spring 1.4310
	Voltage tolerance	± 10% to VDE 0580, special design on request
	Insulation class (wire)	H (180°C)
	Duty cycle	100% ED
	E-port	connector DIN EN 175301-803, Form A (connector see accessories), connection box IP 67 on request
	Enclosure rating	IP 65 with mounted connector, IP 67 / cable port on request
	Power consumption DN05	24 VDC 1,32 A 207 VDC (230 VAC) 0,15 A
MOUNTING	mounting brackets (see accessories) or mounting hole
WEIGHT	0,9 kg

*Operating pressure 2/2-way P → A

**Back pressure 2/2-way A → P
