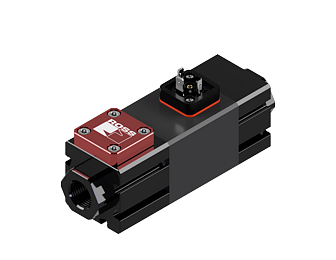

CLASSIC - DN10, DN15, DN25 (2/2-Way direct acting) Series CLASSIC, electromagnetic, coaxial control tube and rotating valve seat
Brochure
Operating Instructions
Product Catalog
ROSS Coaxial Valves – Reliable, Versatile, and Efficient
ROSS Coaxial Valves are designed for demanding industrial applications where fast response times, high flow rates, and reliability are essential.
- The Series CLASSIC - (DN10, DN15, DN25) is available as 2/2- or 3/2-way valves, either direct acting or externally controlled, offering flexible solutions for various applications.
Key Features & Benefits
| Media | liquid, highly viscous, contaminated, aggressive and abrasive media as well as neutral and reactive gases |
| Spherical valve seat | 4-way rotation ensures longer service life and high flow rate |
| Fast and precise control | efficient process control, optimized system performance |
| Customized design | enables versatile use and different media |
| Maintenance | in many cases, it is not necessary to remove the coaxial valve for maintenance |
For enhanced functionality, a wide range of Accessories for Coaxial Valves is available.
OPEN CONFIGURATOR
Standard Specification, direct acting:
| GENERAL | Sizes | DN10, DN15, DN25 |
| Construction design | coaxial control tube and rotating valve seat | |
| Functions | 2/2- and 3/2-Way, normally closed NC or normally open NO | |
| Operating mode | direct acting, electromagnetic | |
| Mounting position | any | |
| Port Size | G 1/4 - G 1-1/2; NPT 1/4 - NPT 1-1/2 | |
| kv-ø-Value | DN10 - max. 3.7 m³/h, DN15 - max. 8.4 m³/h, DN25: max. 21.9 m³/h | |
| VALVE BODY | Material | aluminium black anodized or stainless steel |
| CONSTRUCTION MATERIAL | Valve seat | PTFE, others on request |
| Sealing material | FKM, on demand EPDM, NBR and others available on request | |
| Materials in contact with media | aluminium black anodized; stainless steel on request | |
| Control tube | stainless steel | |
| OPERATING CONDITIONS | Operating pressure* | 0 - 16 bar / 0- 40 bar, higher pressure on request |
| Back pressure** | max. 0 - 16 bar, higher back pressure on request | |
| Vacuum (special design) | < 1* 10-6 mbar*l/s | |
| Ambient temperature | -10°C to +50°C, other temperatures on request | |
| Media temperature | -10°C to 100°C, other temperatures on request | |
| ELECTRICAL PARAMETER | Voltage | 24 VDC / 230 V 50-60 Hz (with external rectifier), special voltage on request |
| Drive | DC solenoid housing steel, surface-coated. Reset: spring 1.4310 | |
| Voltage tolerance | ± 10% to VDE 0580, special design on request | |
| Insulation class (wire) | H (180°C) | |
| Duty cycle | 100% ED | |
| E-port | connector DIN EN 175301-803, Form A (connector see accessories), connection box IP 67 on request | |
| Enclosure rating | IP 65 with mounted connector, IP 67 / cable port on request | |
| Power consumption DN10 | N-Coil: 24 VDC 1 A H-Coil: 24 VDC 1.5 A H-Coil: 207 VDC (230 VAC) 0.175 A | |
| Power consumption DN15 | N-Coil: 24 VDC 1.7 A H-Coil: 24 VDC 2.1 A H-Coil: 207 VDC (230 VAC) 0.19 A | |
| Power consumption DN25 | N-Coil: 24 VDC 2.6 A H-Coil: 24 VDC 3.5 A H-Coil: 207 VDC (230 VAC) 0.3 A | |
| MOUNTING | mounting brackets (see accessories) or mounting hole | |
| WEIGHT | DN10 - 1.5 kg, DN15 - 3.7 kg, DN25 - 7.7 kg | |
*Operating pressure 2/2-way P → A – 3/2-way P → A / P → R
**Back pressure 2/2-way A → P – 3/2-way A → P / R → P
+

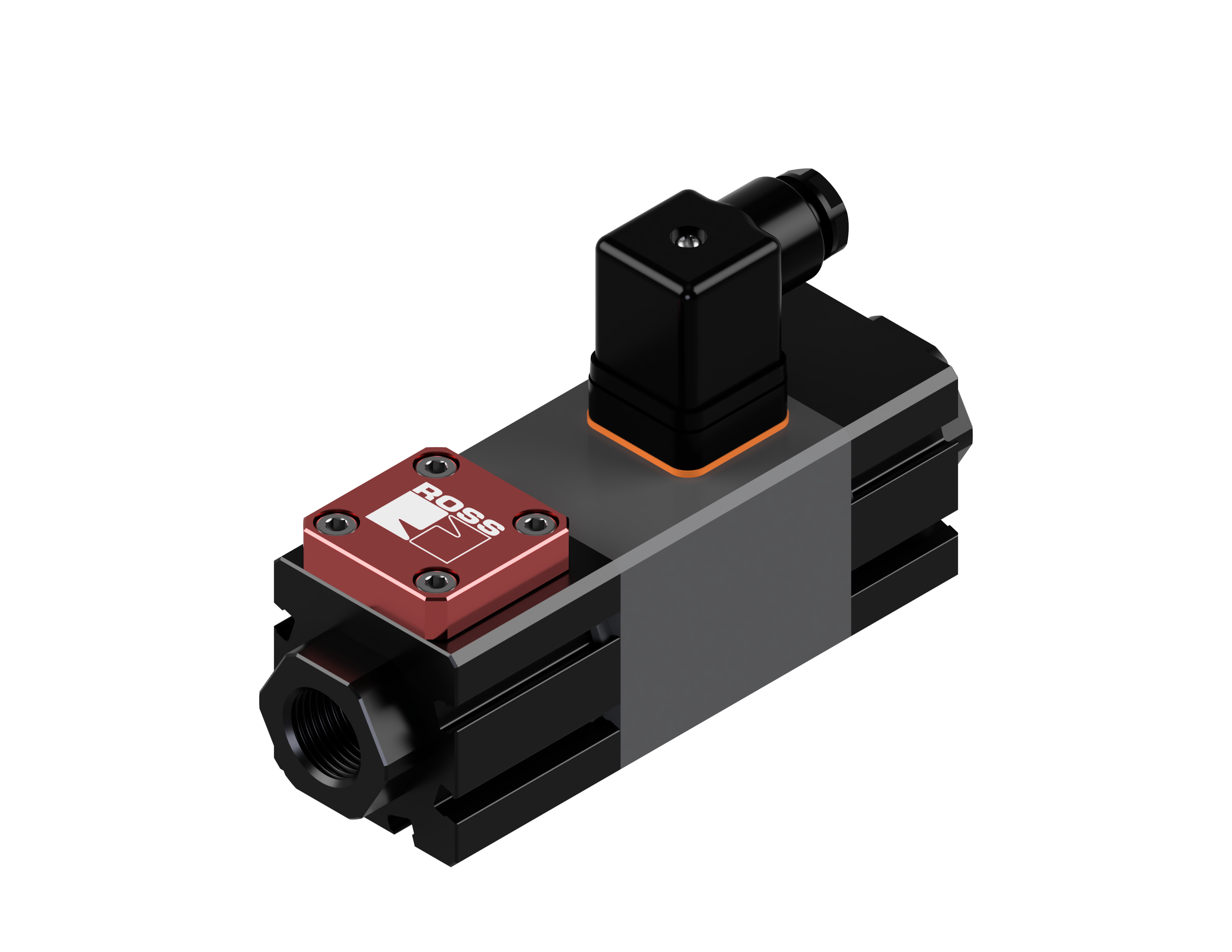

CLASSIC - DN10, DN15, DN25 (2/2-Way direct acting)
